| Brand | MSD |
|---|---|
| Part type | Ignition Control Module |
| Brand | MSD |
| Category | Ignition |
| Color | Red |
| Connector Gender | Male |
| Connector Quantity | 2 |
| Emission Code | 8 |
| Engine | GM Gen III/IV (LS) |
| Grade Type | Performance |
| Height | 4.6 in |
| Ignition Type | Performance |
| Length | 13.1 in |
| Mount Type | Surface Mount |
| Mounting Hardware Included | Yes |

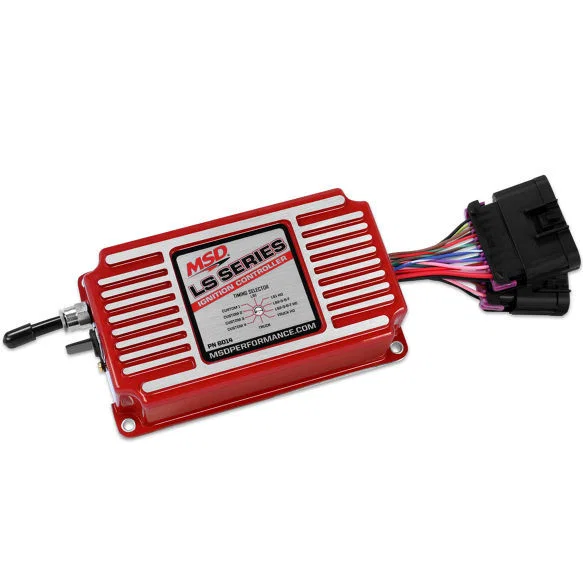

| Product Type | LS Ignition Control Box |
| Terminal Gender | Male |
| Voltage Required | 12 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Width | 6.6 in |
| UPC / GTIN | 00085132060146 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- Optional coolant temperature sensor input
- No PC required for basic functionality
- Individual cylinder timing
- Compatible with all MSD, Accel and GM LS coils
- Rotary selector switch allows timing changes on the fly
- Nitrous and boost compatible
- Programmable step retard
- Fully Sealed direct plugin connectors
- Launch retard
- High speed data acquisition
- Launch and max rev limiters
- Fits most LS Engines
- Six preprogrammed timing tables for easy set-up
- Idle timing control
Description
The LS Ignition controller includes a built-in 2.5 Bar MAP sensor that can be used with Naturally Aspirated or boosted applications. This allows for timing advance or retard based on the intake manifold pressure.
