| Brand | MSD |
|---|---|
| Part type | Ignition Control Module |
| Bluetooth | No |
| Brand | MSD |
| C.A.R.B. EO # | D-40-43 |
| Category | Ignition |
| Color | Red |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Current Draw | 1000 |
| Emission Code | 1 |
| Features | No Rev Limiter |
| Grade Type | Performance |
| Height | 1.825 in |
| Ignition Box Type | Digital |
| Ignition Type | Performance |
| Length | 8 in |
| MAP Sensor | No |
| Maximum RPM | 15,000 |
| Mount Type | Surface Mount |
| Mounting Hardware Included | Yes |
| Primary Voltage | 520-540 |

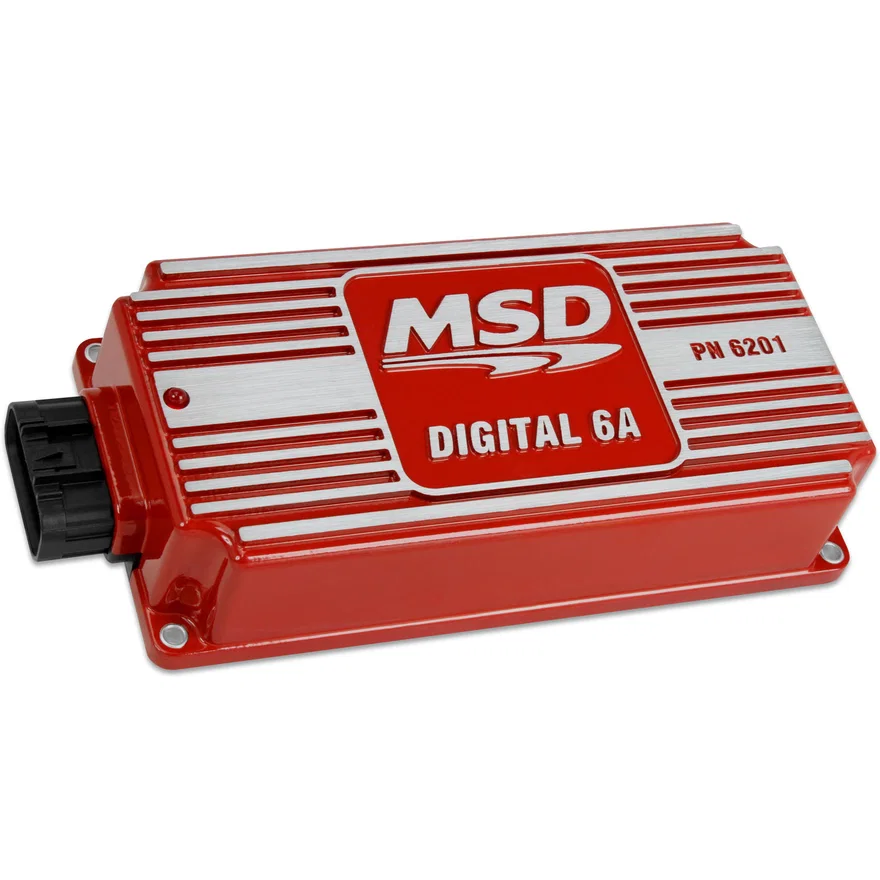

| Product Type | Digital 6A Ignition Control Box |
| Rev Limiter | No |
| Rotary Dials | No |
| Secondary Voltage | 45,000 |
| Spark Energy (mJ per spark) | 135-145 |
| Sub Category | Control Modules |
| Terminal Gender | Male |
| Terminal Quantity | 12 |
| Voltage Required | 12-15 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| UPC / GTIN | 00085132062010 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- Built-in LED for system checks
- Smooth Idle
- Sealed, locking connector
- Full, capacitive discharge ignition power throughout the RPM range
- Easy Starts
- Tach output wire
- .7 Amp per 1,000 RPM
- Compatible with 4, 6 or 8 - cylinder engines
- Quick throttle response
- 12-15 Volts, 7 Volt Start
- 15,000 RPM with 14.4 Volts
Description
A sealed, locking connector keeps the minimal wiring of the 6A tidy for a clean installation in all applications. It can be run on 4, 6 and 8 cylinder engines with a 12 volt negative ground electrical system and can be triggered with breaker points, an electronic amplifier or magnetic pickups.
