| Brand | MSD |
|---|---|
| Part type | Ignition Control Module |
| Brand | MSD |
| Category | Ignition |
| Color | Black |
| Connector Gender | Male Female |
| Connector Quantity | 3 |
| Emission Code | 4 |
| Grade Type | Performance |
| Height | 2.25 in |
| Ignition Type | Performance |
| Length | 8 in |
| Maximum RPM | 15,000 |
| Mount Type | Surface Mount |
| Mounting Hardware Included | Yes |
| Primary Voltage | 550 |
| Product Type | Ignition Box |
| Secondary Voltage | 40,000 |
| Spark Energy (mJ per spark) | 150 |
| Spark Series Duration | 20 Degree Crankshaft Rotation |
| Sub Category | Control Modules |
| Terminal Gender | Male Female |
| Terminal Quantity | 11 |
| Voltage Required | 12-18 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight and Size | 5.1 lbs.,8L x 4W x 2.25H |
| Width | 4 in |
| UPC / GTIN | 00085132066322 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- 12-18 Volts, Negative Ground
- 15,000 RPM with 14.4 Volts
- 6-pin Weathertight connector, mandatory for NASCAR use
- Accepts breaker points, amplifier and magnetic pickup trigger inputs
- Multiple sparks for 20 degrees of crankshaft rotation
- Includes built-in Soft Touch rev limiter
- 550 primary voltage output to coil
- 150 millijoules per spark up to 15,000 RPM
- No CARB Exemption Order Number
- Clear epoxy potting compound for vibration protection and clear base plate for easy tech inspection
- Must be used with HVC Coil PN 8250
Description

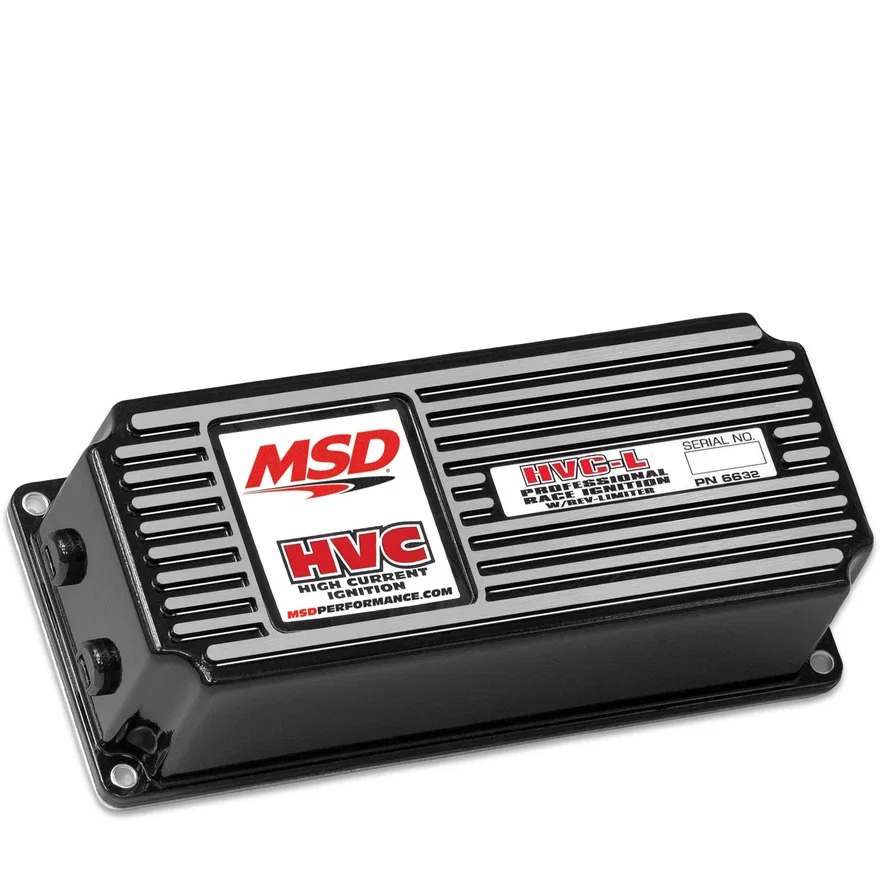

The advanced component design and circuitry of the 6 HVC Ignitions produce incredible voltage with high current output. Internally there is an efficient heat sync, solid component mounting and it's all encased in a clear epoxy. The rpm limit is adjustable with plug-in modules and the wiring is routed into NASCAR approved Deutsch style MSD connectors.
