| Brand | MSD |
|---|---|
| Part type | Ignition Control Module |
| Brand | MSD |
| C.A.R.B. EO # | D-722-2 |
| Category | Ignition |
| Color | Black |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Current Draw | 1000 |
| Emission Code | 1 |
| Features | Rev Limiter |
| Grade Type | Performance |
| Height | 2 in |
| Ignition Type | Performance |
| Length | 7 in |
| Maximum RPM | 12,500 |
| Mount Type | Surface Mount |
| Mounting Hardware Included | Yes |
| Primary Voltage | 535 |

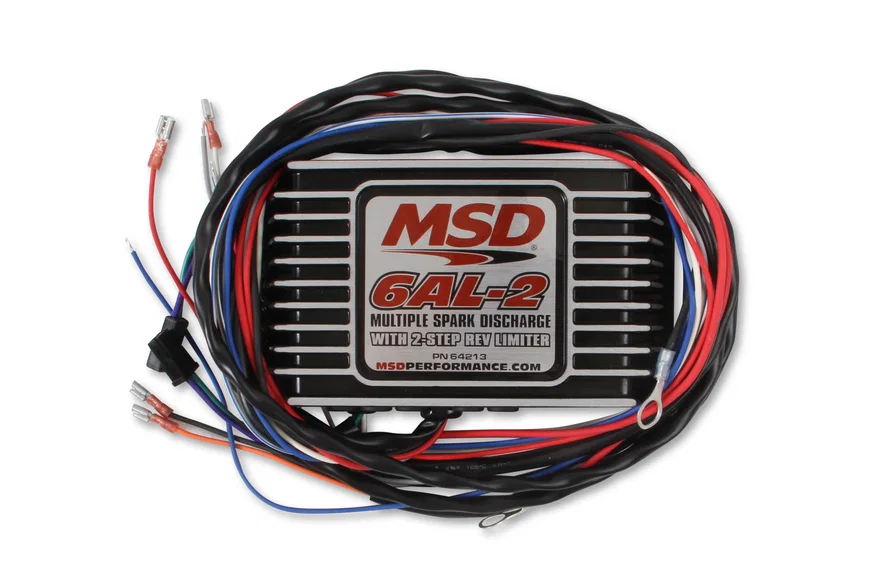

| Product Type | 6AL-2 Ignition Control Box |
| Secondary Voltage | 45,000 |
| Spark Energy (mJ per spark) | 135 |
| Sub Category | Control Modules |
| Terminal Gender | Male Female |
| Terminal Quantity | 5 |
| Voltage Required | 12-18 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight and Size | 3 lbs., 7L x 4W x 2H |
| Width | 4 in |
| UPC / GTIN | 00085132642137 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- All new housing, same reliable digital circuitry and performance
- 12-18 Volts, Negative Ground
- 12,500 RPM with 14.4 Volts
- .7 Amp per 1,000 RPM
- Accepts Hall-effect, Points and Mag pickup triggers
- Built-in 2-Step rev control adjustable with rotary dials
- Higher output with up to 135mJ of spark energy
- Managed by an efficient digital processor
Description
MSD is excited to announce the next generation of 6-Series ignition controls - the 6AL-2! The ignition control combines a new housing, new digital controls, and more power in a sleek package. Inside the new cast aluminum housing, you'll find an advanced micro-controller that manages the built-in two-step rev-limiter. The spark output of the new box has been turned up to 535 volts of primary voltage with spark energy reaching up to 135 millijoules! The multiple sparks of the 6AL-2 burn in the cylinder for 20 degrees of crankshaft rotation to ensure complete combustion.
