| Brand | MSD |
|---|---|
| Part type | Ignition Control Module |
| Brand | MSD |
| Category | Ignition |
| Color | Red |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Current Draw | 1000 |
| Emission Code | 4 |
| Features | Start Retard |
| Grade Type | Performance |
| Height | 1.87 in |
| Ignition Type | Performance |
| Length | 7.89 in |
| Maximum RPM | 12,000 |
| Mount Type | Surface Mount |
| Mounting Hardware Included | Yes |
| Primary Voltage | 535-550 |
| Product Type | Ignition |
| Secondary Voltage | 45,000 |
| Spark Energy (mJ per spark) | 135 w/ Blaster Coil / 150 w/ HVC Coil PN 8250 |
| Spark Series Duration | 20° Crankshaft Rotation |
| Sub Category | Control Modules |
| Terminal Gender | Male |
| Terminal Quantity | 12 |
| Voltage Required | 6-18 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight and Size | 2.5 lbs. 7.89L x 4.00W x 1.87H |
| Width | 4 in |
| UPC / GTIN | 00085132064274 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- 0.8 Amps per 1,000 RPM
- Reverse polarity and overheat protection provide ultimate reliability
- Works on 4, 6 and 8 cylinder engines
- Full delivery of spark energy down to 6 volts battery supply
- Built-in Start Retard adjustable in 0⁰, 10⁰ or 20⁰ increments for quick, easy starts and extend starter life
- Highly efficient, low current draw for extended battery life
- MSD’s smoothest rev limiter yet! Won’t upset the chassis and easy on parts
- Simple setup of features such as the rev limiter with three rotary dials on the face of the unit
- 535V w/ Blaster Coil / 550V w/ HVC Coil PN 8250
- Rugged built, epoxy filled housing protects the circuit board to stand up to demanding race conditions
- LED displays rev limit, highest RMP turned, cylinder select, start retard, battery voltage and can be set to tach mode
- Records highest RPM the engine turned for last 20 minutes of run time
- Tamper proof screws to prevent modification of unit
- Single plug-in connector for clean wiring
- Large, easy to read LED display
Description

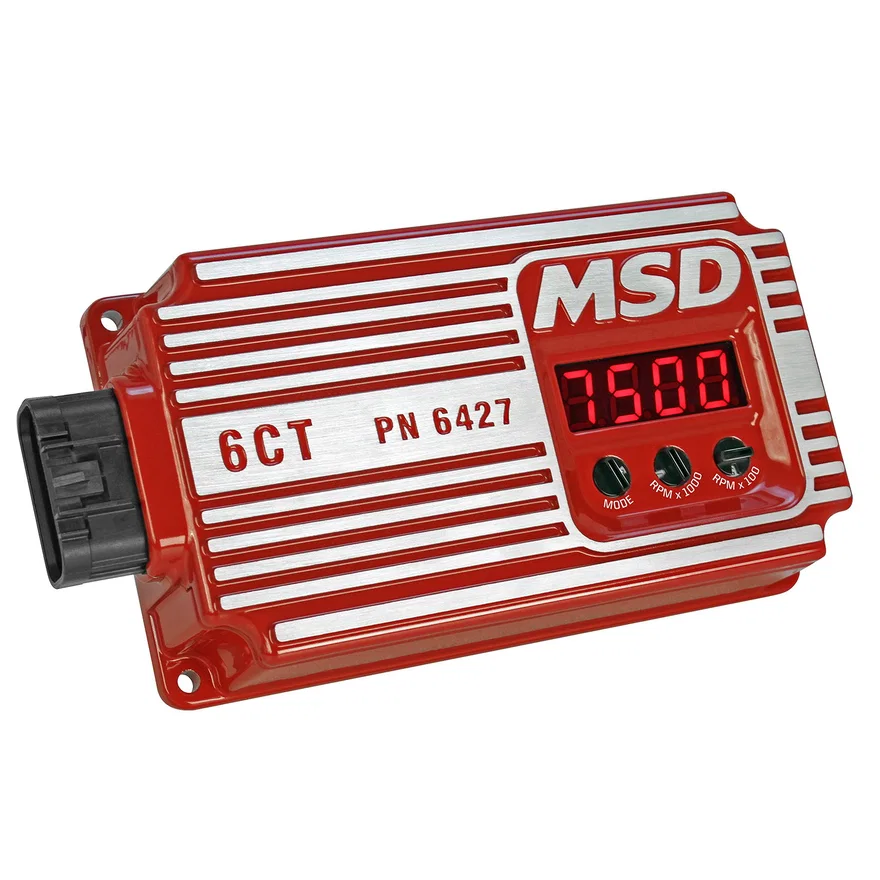

Superior design makes the 6CT Circle Track Ignition Control unit the most advanced and durable ignition to ever hit a circle track. Packed with legendary MSD Ignition power, the 6CT offers a slew of features. A large digital LED display makes it easier than ever to see the rev limiter setting when dialing it in using the laser etched rotary dials on the face of the unit.
