| Brand | MSD |
|---|---|
| Part type | Ignition Control Module |
| Brand | MSD |
| Category | Ignition |
| Color | Black |
| Connector Gender | Terminal Strip |
| Connector Quantity | 3 |
| Current Draw | 6000 |
| Emission Code | 4 |
| Grade Type | Race |
| Height | 5.75 in |
| Ignition Type | Performance |
| Length | 8.25 in |
| Maximum RPM | 14,000 |
| Mount Type | Surface Mount |
| Mounting Hardware Included | Yes |
| Primary Voltage | 570 |
| Product Type | Ignition Box |
| Secondary Voltage | 50,000 |
| Spark Duration | 20 Deg Crankshaft Rotation |
| Spark Energy (mJ per spark) | 160 |
| Sub Category | Control Modules |
| Terminal Gender | Terminal Strip |
| Terminal Quantity | 18 |
| Voltage Required | 12-18 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight and Size | 4.85 lbs., 8.25L x 3.75W x 5.75H |
| Width | 3.75 in |
| UPC / GTIN | 00085132073306 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- 3-Step Rev Limiter
- 6 Amps Per 6,000 RPM; 12 Amps at 12,000 RPM
- Cylinder Select 4, 6, 8 Cyl
- 12-18 Volts, Negative Ground
- Adjustable Start Retard
- 4-Stage Multi-Step Retard
- Diagnostic Trigger LED
- RPM Activated Switch
- 14,000 RPM with 14.4 Volts
Description

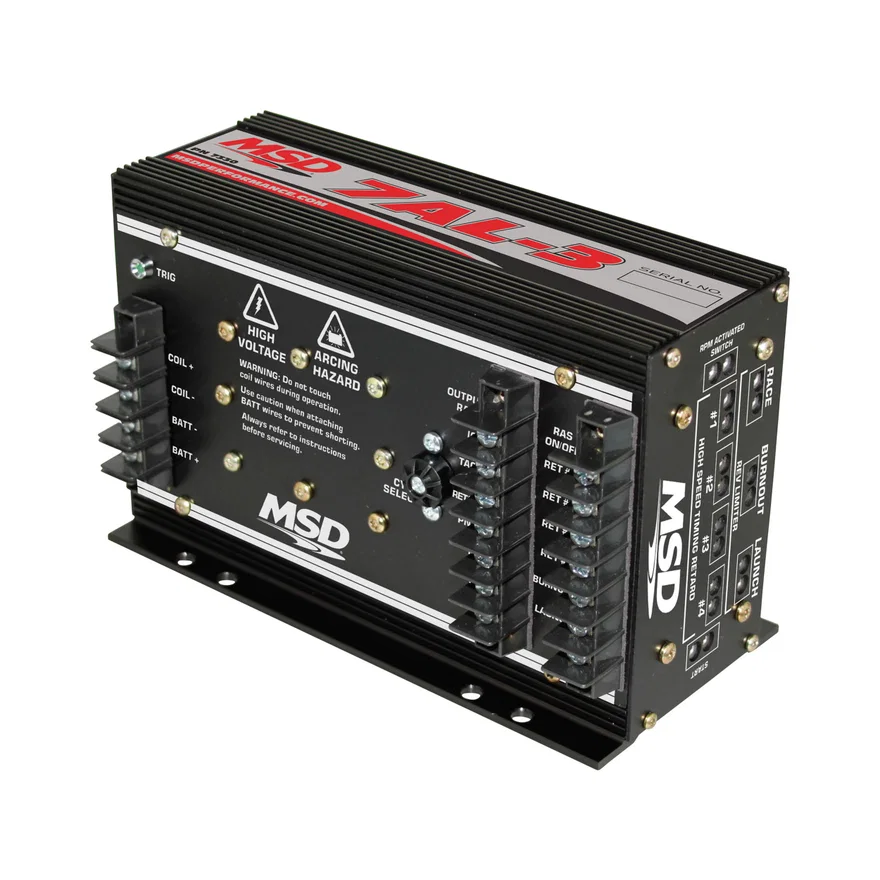

Something new is that the start retard is now adjustable with plug-in modules giving you better control over the amount of retard pulled out during cranking. The unit is supplied with a variety of rpm and timing modules. It is has a foot print that fits into the red 7AL-3's mount.
