| Brand | MSD |
|---|---|
| Part type | Ignition Control Module |
| Brand | MSD |
| Category | Ignition |
| Color | Black |
| Connector Gender | Terminal Strip |
| Connector Quantity | 2 |
| Current Draw | 6000 |
| Emission Code | 4 |
| Features | Rev Limiter |
| Grade Type | Race |
| Height | 5.75 in |
| Ignition Type | Performance |
| Length | 8.25 in |
| Maximum RPM | 14,000 |
| Mount Type | Surface Mount |
| Mounting Hardware Included | Yes |
| Primary Voltage | 570 |
| Product Type | Ignition Box |
| Secondary Voltage | 47,000 |
| Spark Energy (mJ per spark) | 160 |
| Sub Category | Control Modules |
| Terminal Gender | Terminal Strip |
| Terminal Quantity | 10 |
| Voltage Required | 12-18 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight and Size | 4.85 lbs., 8.25L x 3.75W x 5.75H |
| Width | 3.75 in |
| UPC / GTIN | 00085132722235 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- 6 Amps Per 6,000 RPM; 12 Amps at 12,000 RPM
- Built-in 2-step rev control
- Supplied with 3000, 7000, 8000, 9000 RPM Chips
- Terminal strips for convenient hookup
- 12-18 Volts, Negative Ground
- Diagnostic Troubleshooting LED
- Operates on 4, 6 or 8-cylinder engines
- 14,000 RPM with 14.4 Volts
Description

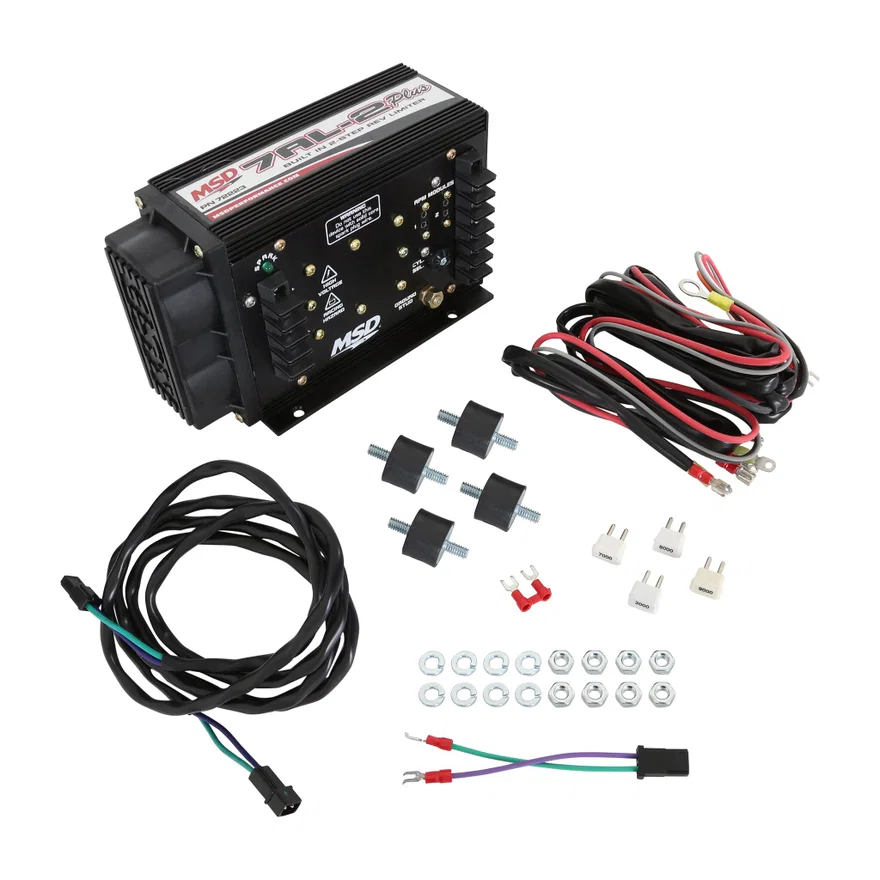

You'll recognize the 7AL-2 Plus Ignition Control now in Black! As its predecessor is the most popular ignition control used in drag racing. The "Plus" model updates the original 7AL-2 with improved internal components plus our engineers added a 2-Step Rev Control and a useful diagnostic LED.
