| Brand | MSD |
|---|---|
| Part type | Ignition Control Module |
| Brand | MSD |
| C.A.R.B. EO # | D-722-2 |
| Category | Ignition |
| Color | Red |
| Connector Gender | Male Female |
| Connector Quantity | 1 |
| Current Draw | 1000 |
| Emission Code | 1 |
| Grade Type | Performance |
| Height | 2.2 in |
| Ignition Type | Performance |
| Length | 8.5 in |
| Maximum RPM | 12,500 |
| Mount Type | Surface Mount |
| Mounting Hardware Included | Yes |
| Primary Voltage | 535 |

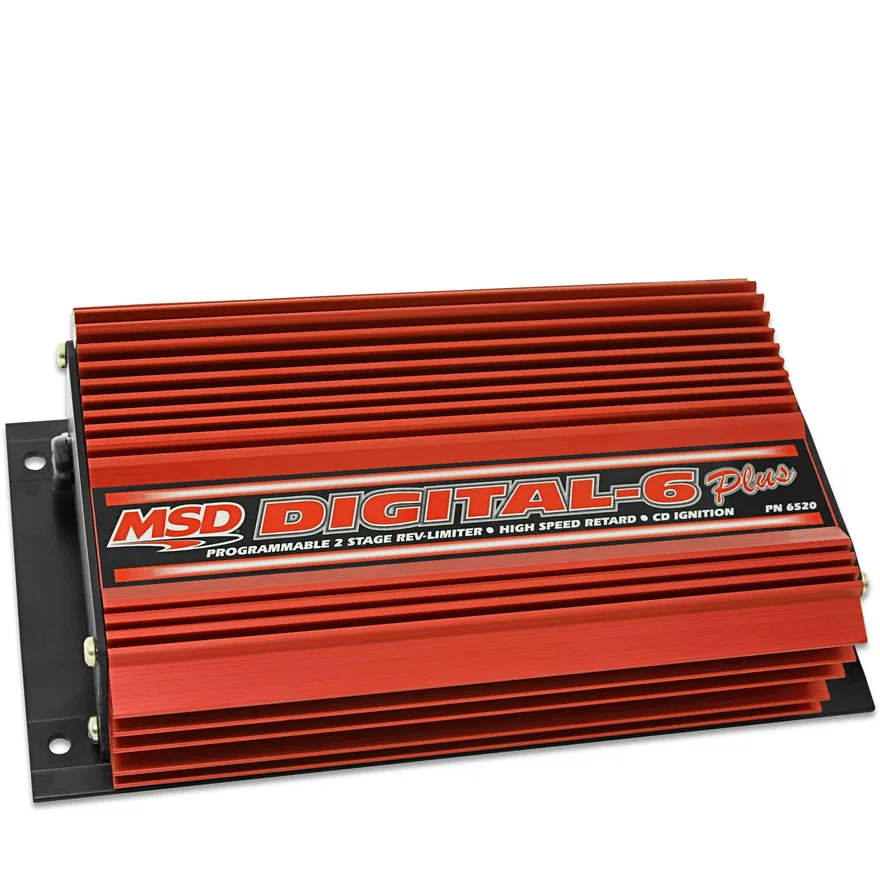

| Product Type | Digital 6-Plus Ignition Control Box |
| Secondary Voltage | 45,000 |
| Spark Energy (mJ per spark) | 135 |
| Spark Series Duration | 20° Crankshaft Rotation |
| Sub Category | Control Modules |
| Terminal Gender | Male Female |
| Terminal Quantity | 10 |
| Voltage Required | 12-18 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight and Size | 3.7 lbs., 8.5L x 4.5W x 2.2H |
| Width | 4.5 in |
| UPC / GTIN | 00085132065202 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- 12,500 RPM with 14.4 Volts
- Adjustable magnetic pickup compensation produces accurate trigger signals.
- Switch between two rev limits that adjust with rotary switches in 100 rpm increments.
- 12-18 Volts, Negative Ground
- LED display warns of trigger signal problems or faulty charging system.
- Start retard eases pressure on the starter, flywheel and engine.
- .7 Amp per 1,000 RPM
- Single stage retard for nitrous and top end performance.
