| Brand | MSD |
|---|---|
| Part type | Ignition Control Module |
| Brand | MSD |
| Category | Ignition |
| Color | Blue |
| Connector Gender | Male Female |
| Connector Quantity | 1 |
| Current Draw | 1000 |
| Emission Code | 3 |
| Features | Start Retard |
| Grade Type | Marine |
| Height | 1.87 in |
| Ignition Type | Performance |
| Length | 7.89 in |
| Maximum RPM | 12,000 |
| Mount Type | Surface Mount |
| Mounting Hardware Included | Yes |
| Primary Voltage | 535-550 |
| Product Type | Ignition |
| Secondary Voltage | 45,000 |
| Spark Energy (mJ per spark) | 135 w/ Blaster Coil / 150 w/ HVC Coil PN 8250 |
| Spark Series Duration | 20° Crankshaft Rotation |
| Sub Category | Control Modules |
| Terminal Gender | Male |
| Terminal Quantity | 12 |
| Voltage Required | 6-18 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight and Size | 2.5 lbs. 7.89L x 4.00W x 1.87H |
| Width | 4 in |
| UPC / GTIN | 00085132065646 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- Highly efficient, low current draw for extended battery life
- Works on 4, 6 and 8 cylinder engines
- Large, easy to read LED display
- Easy setup of features with three rotary dials on the face of the unit
- Records highest RPM the engine turned for last 20 minutes of run time
- LED display shows rev limit, highest RMP turned, cylinder select, start retard, battery voltage and can be set to tach mode
- Can be triggered by magnetic pickup, amplifier, and points inputs
- 0.8 Amps per 1,000 RPM
- Reverse polarity and overheat protection provide ultimate reliability
- Shift interrupt feature eases shifting
- Built-in Start Retard adjustable in 0⁰, 10⁰ or 20⁰ increments for quick, easy starts and extend starter life
- Sealed connector for clean wiring and trouble-free operation
- 535V w/ Blaster Coil / 550V w/ HVC Coil PN 8250
- Fully potted housing to withstand demanding marine conditions
- Full delivery of spark energy and easy starting down to 6 volts battery supply
- MSD’s smoothest rev limiter yet, protecting parts and saving your engine
Description

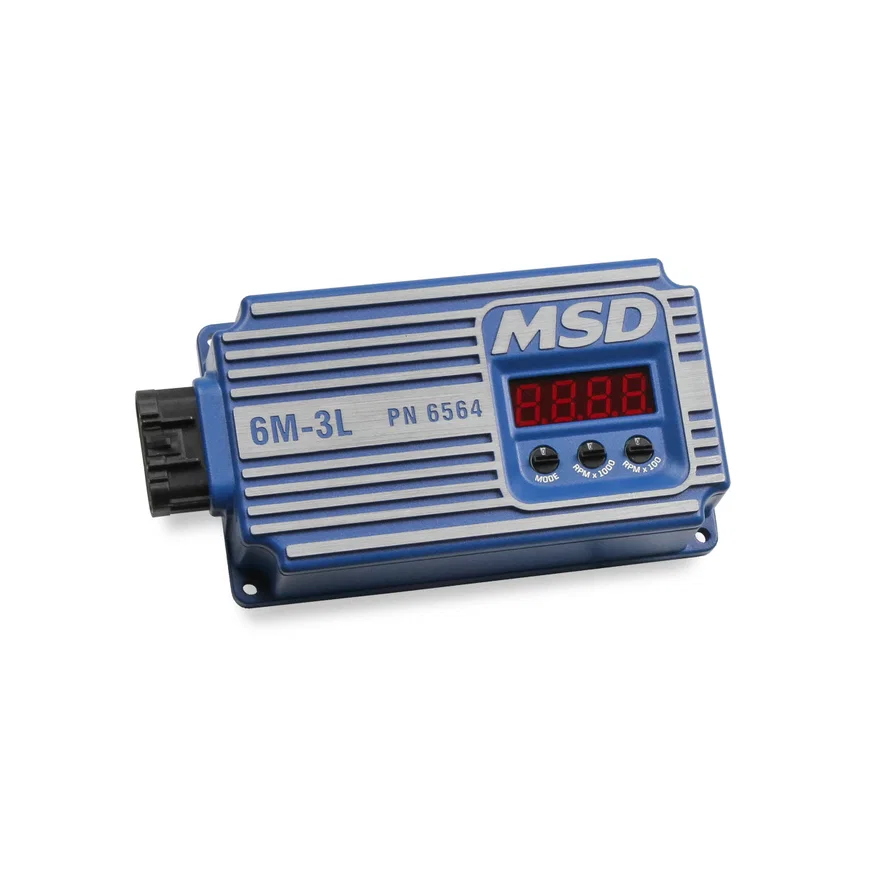

Three rotary dials and an LED display simplfy setting the cylinder select, start retard and rev limiter. Plug-in rev limiter chips and hard to read dials are a thing of the past. For diagnostic purposes, the LED display can also be set to a live tach mode on V8's and even display battery voltage with the turn of a knob.
