| Brand | MSD |
|---|---|
| Part type | Ignition Control Module |
| Brand | MSD |
| Category | Ignition |
| Color | Black |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Current Draw | 10000 |
| Emission Code | 3 |
| Grade Type | Performance |
| Height | 2.2 in |
| Ignition Type | Performance |
| Length | 9.5 in |
| Maximum RPM | 14,000 |
| Mount Type | Surface Mount |
| Mounting Hardware Included | Yes |
| Primary Voltage | 460-480 |
| Product Type | Ignition |
| Secondary Voltage | 43,000 |
| Spark Energy (mJ per spark) | 170 |
| Spark Series Duration | 20 Degree Crankshaft Rotation |
| Sub Category | Control Modules |
| Terminal Gender | Male Female |
| Terminal Quantity | 5 |
| Voltage Required | 10-18 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight and Size | 3 lbs., 9.5L x 4.5W x 2.2H |
| Width | 4.5 in |
| UPC / GTIN | 00085132621538 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- Two adjustable Rev Limits
- 10-18 Volts, Negative Ground
- Adjustable retard stage
- Ignition Interrupt Circuit
- Diagnostic LED
- 14,000 RPM with 14.4 Volts
- 10 Amps at 10,000 RPM
Description

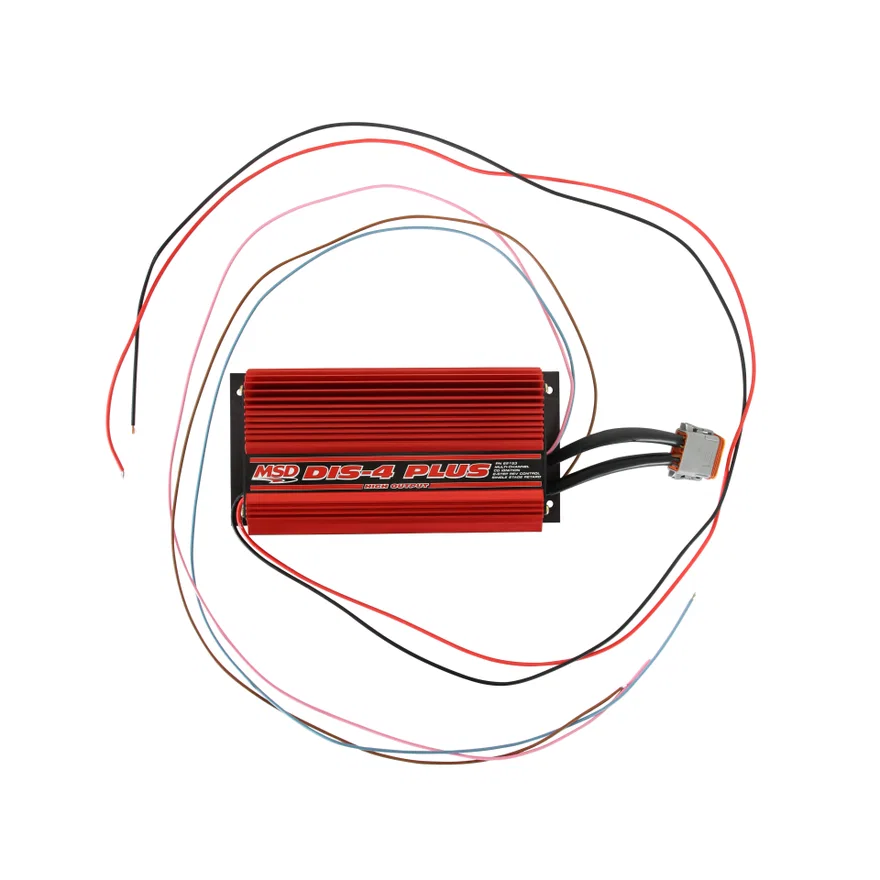

For full bred drag race engines running high boost pressures from turbos, blowers or nitrous we offer a Higher Output version of the DIS Ignition Control. The DIS-4 Plus HO Ignition produces an incredible 170 millijoules of spark energy with 470 primary volts. This increased output will light up fuel mixtures even under extreme cylinder pressures.
