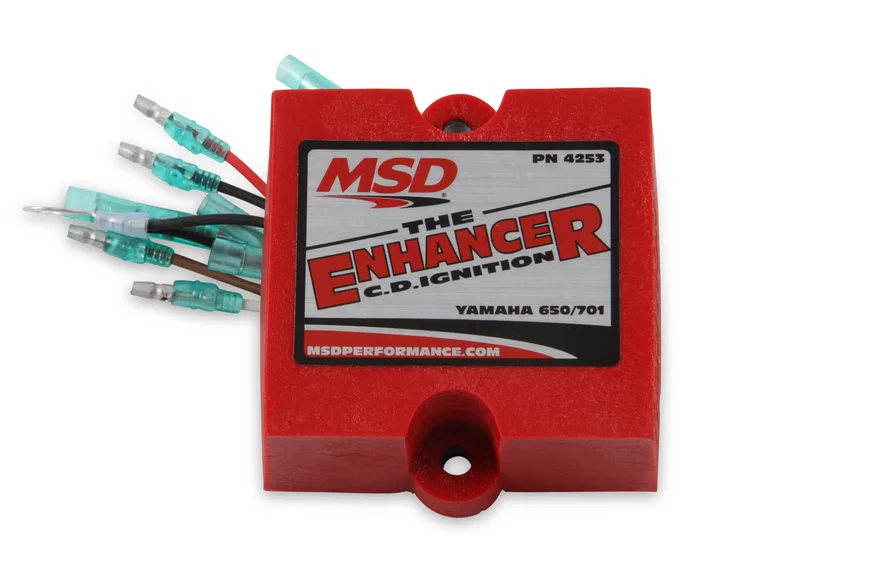

MSD Enhancer Ignition, 650-701 Yamaha

Part # 4253SKU MSD4253

Set your vehicle above for a fit verdict. 1 vehicle listed below.

Specifications
BrandMSD
Part typeIgnition Control Module
ApplicationMarine Powersports
BrandMSD
CategoryIgnition
ColorRed
ConditionNew
Connector GenderMale Female
Connector Quantity8
Dimensions7.5 L x 4.5 W x 2.25 H
Emission Code4
Grade TypePerformance
Height3.6 in
Ignition TypePerformance
Length7.2 in
Maximum RPM5,500-9,000 RPM Rev Limiter
Maximum Voltage30
Mount TypeSurface Mount
Mounting Hardware IncludedYes
Primary Resistance0.2 Ohms
Product TypeIgnition Box
Secondary ResistanceLess than 2000 Ohms
Sub CategoryControl Modules
Terminal GenderMale Female
Terminal Quantity8
Turns Ratio2.92
Voltage Required12
WarrantyManufacturer's Limited 1 Year Warranty
Width6.6 in
UPC / GTIN00085132042531
WarrantyManufacturer's Limited 1 Year Warranty
  • Factory style connectors for a direct plug-in installation.
  • Bolt in place of the factory ignition.
  • High output sparks improve throttle response, starting and top end power.

Description

If you own a Yamaha with a 650 or 701 engine, this Enhancer is a necessity! The Enhancer produces a powerful spark with increased spark duration. Not only does the improved spark energy boost power, but this Enhancer features a more aggressive timing curve for even more power to get you going! At lower rpm you'll notice incredible acceleration and throttle response due to advancing the timing. Then as the rpm increases, the timing is retarded to the factory setting to prevent detonation and engine damage. For racers, there is also a lower rpm limit that you can activate for quick and consistent holeshots. By activating a switch mounted on the handlebar the rpm will limit at approximately 3,000 rpm. The instant the button is released, the rpm revs up just as normal and you rocket off. Everything you need to install the Yamaha Enhancer is supplied along with factory connectors for a direct plug-in installation!

Fits these vehicles 1

YearMakeModelSubmodel
1990 - 1993YamahaSJ650 Super JetBase
