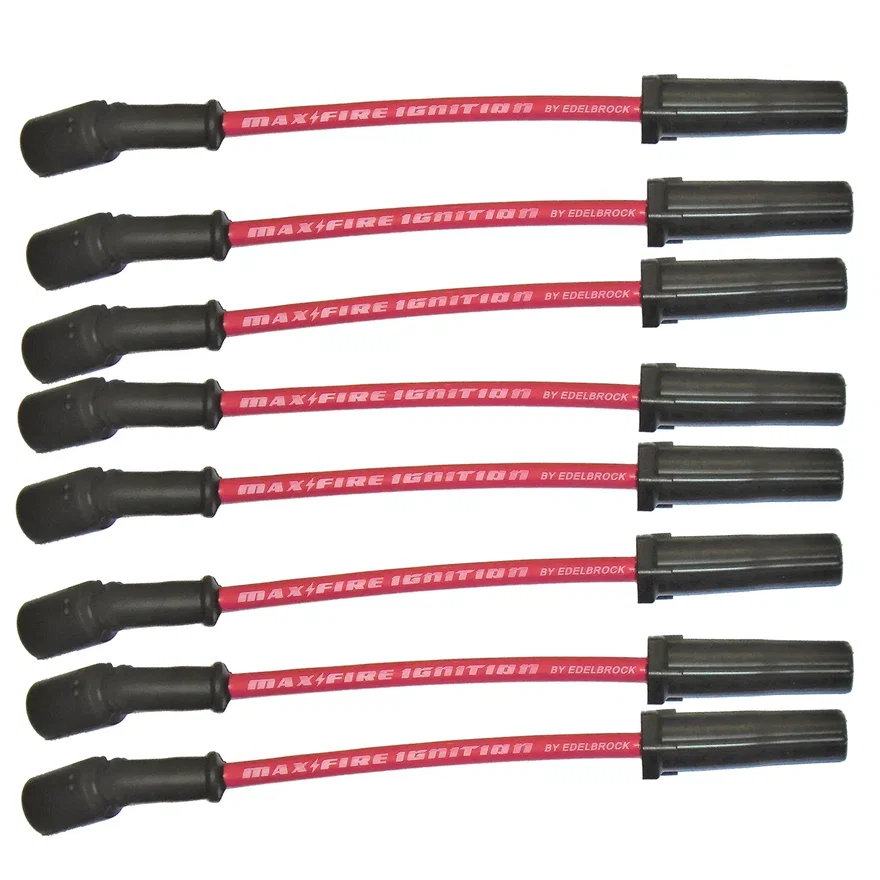

Edelbrock Max-Fire 8.5mm High Performance Spark Plug Wires without Heat Shields

Part # 22717SKU EDE22717

Universal fit

Specifications
BrandEdelbrock
Part typeSpark Plug Wire Set
Coil End Boot ColorBlack
Coil Wire Length12.5 in
Core MaterialMagnetic Kevlar Core
Insulation ColorWhite
Insulation MaterialEPDM
Insulation Outside Diameter0.23 in
Noise Suppression TypeYes
Outside Diameter8.5 mm
Resistance50
Spark Plug Boot MaterialCompact Silicone
Spark Plug End Boot ColorBlack
Spark Plug End Boot Degree45 deg
Spark Plug End Boot Quantity Straight8
Spark Plug End Terminal TypeLS
Spark Plug Wire Resistance50
Universal Or Specific FitSpecific
Wire 1 Length12.5 in
Wire 2 Length12.5 in
Wire 3 Length12.5 in
Wire 4 Length12.5 in
Wire 5 Length12.5 in
Wire 6 Length12.5 in
Wire 7 Length12.5 in
Wire 8 Length13.0 in
Wire Separators IncludedNo
UPC / GTIN00085347227174
  • Complete preassembled set of LS ignition wires that require no cutting or splicing
  • Red 8.5mm outer silicone jacket
  • Excellent protection from heat, chemicals and moisture
  • 50 ohms per foot of resistance
  • Excellent EMI/RFI suppresion

Description

Edelbrock Max-Fire LS Ignition Wire Kits #22717 is a preassembled set of eight spark plug wires for General Motors LS engines. These wires are manufactured using high-quality materials to ensure the best performance possible with a heavy-duty 8.5mm red silicone outer jacket to protect the spiral-wound Kevlar inner core from heat, moisture and chemicals. This direct-fit wire set delivers maximum voltage with extremely high EMI/RFI suppression with 50 ohms per foot of resistance. This kit is ideal for LS builds that demand a high-performance ignition system upgrade with a precision fit and a show-quality appearance. See application chart for engine- or vehicle-specific Max-Fire kits.
