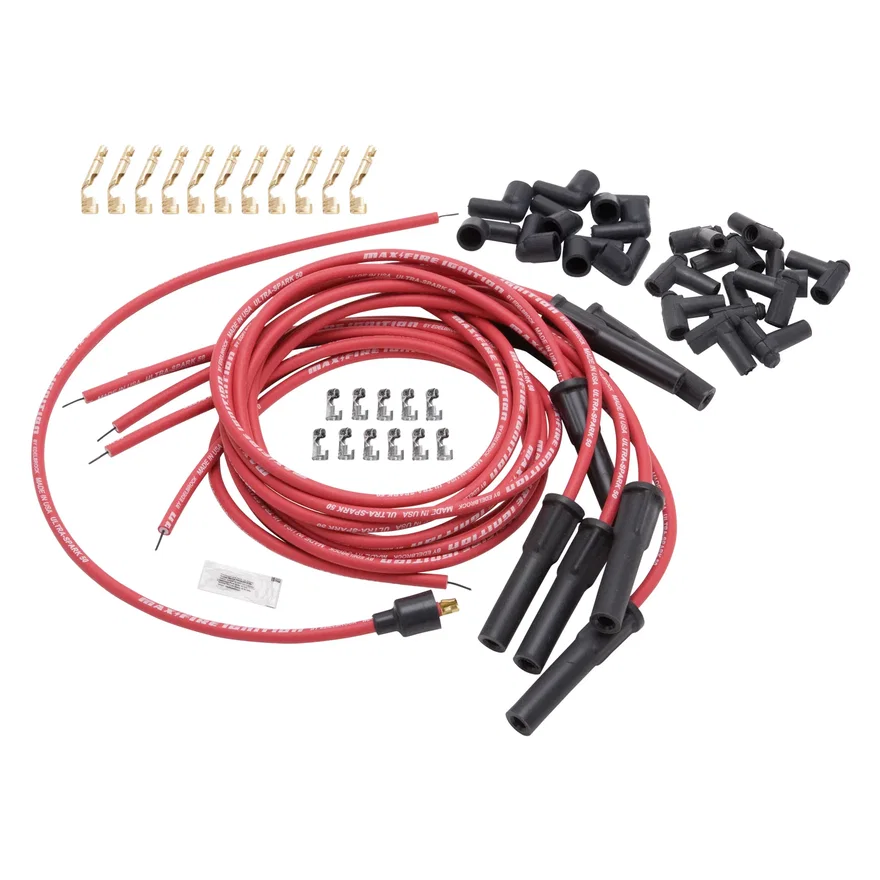

Edelbrock Max-Fire Engine Specific (Ultra-Spark 50) High Performance Spark Plug Wire Set

Part # 22710SKU EDE22710

Universal fit

Specifications
BrandEdelbrock
Part typeSpark Plug Wire Set
Coil End Boot ColorBlack
Core MaterialMagnetic Kevlar Core
Distributor Coil End Boot Degree90 deg
Distributor Coil End Boot TypeHEI
Distributor Coil End Terminal TypeHEI
Insulation ColorWhite
Insulation MaterialInner Insulation
Insulation Outside Diameter0.23 in
Noise Suppression TypeNo
Outside Diameter8.5 mm
Resistance500
Spark Plug Boot MaterialCompact Silicone
Spark Plug End Boot ColorBlack
Spark Plug End Boot Quantity Angled6
Spark Plug End Boot Quantity Straight2
Spark Plug End Terminal TypeStandard
Spark Plug Wire Resistance500
Universal Or Specific FitSpecific
Wire 1 Length22.0 in
Wire 2 Length28.0 in
Wire 3 Length32.0 in
Wire 4 Length32.0 in
Wire 5 Length40.0 in
Wire 6 Length41.0 in
Wire 7 Length41.0 in
Wire 8 Length44.0 in
Wire Separators IncludedNo
UPC / GTIN00085347227105

Description

The Edelbrock #22710 Max-Fire Universal Ultra-Spark 50 spark plug wire sets feature the same high quality as our model specific sets, but give you the flexibility to tailor them to fit your V8 application perfectly. Includes the straight spark plug boot pre-installed from the factory and the 90 Deg boots. The straight boot is a "Vari-Angle" boot that allows the boot to be bent and hold its position in tight areas to clear headers. The Edelbrock #22710 include ear ly OEM socket style and late style HEI plug distributor terminals to make sure your covered. Comes with the following wire lengths
