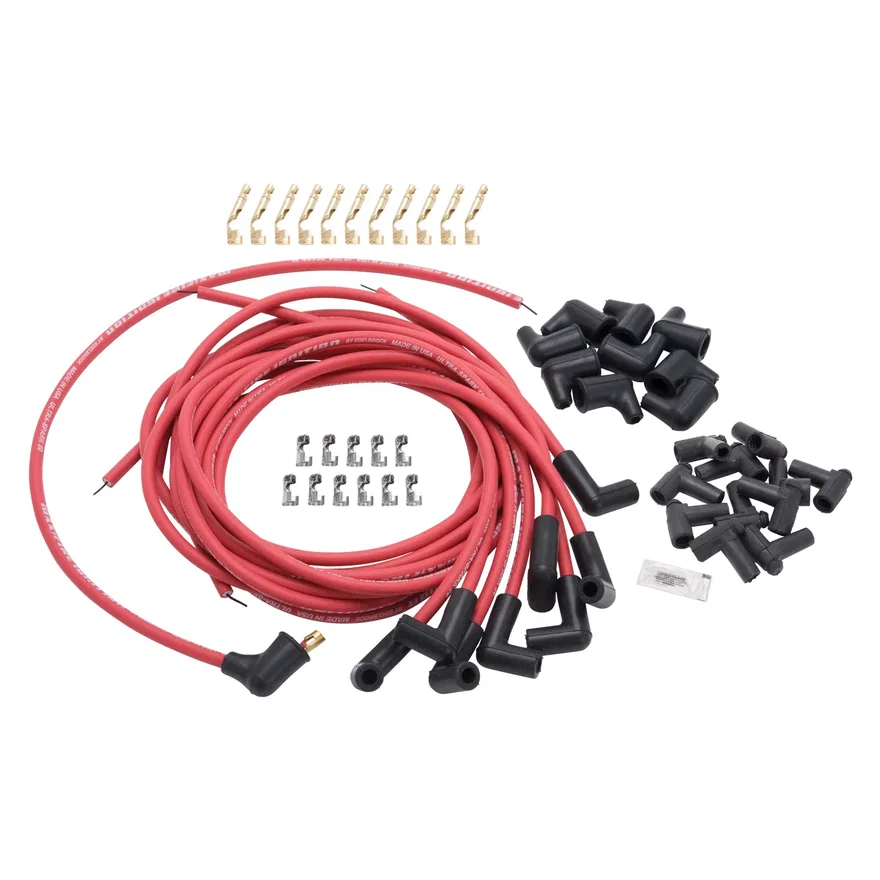

Edelbrock Max-Fire Engine Specific (Ultra-Spark 50) High Performance Spark Plug Wire Set
Part # 22711SKU EDE22711
Universal fit
| Brand | Edelbrock |
|---|---|
| Part type | Spark Plug Wire Set |
| Coil End Boot Color | Black |
| Core Material | Magnetic Kevlar Core |
| Distributor Coil End Boot Degree | 90 deg |
| Distributor Coil End Boot Type | Clip On, HEI Style |
| Distributor Coil End Terminal Type | HEI |
| Insulation Color | White |
| Insulation Material | Inner Insulation |
| Insulation Outside Diameter | 0.23 in |
| Noise Suppression Type | No |
| Outside Diameter | 8.5 mm |
| Resistance | 500 |
| Spark Plug Boot Material | Compact Silicone |
| Spark Plug End Boot Color | Black |
| Spark Plug End Boot Quantity Angled | 8 |
| Spark Plug End Boot Quantity Straight | 8 |
| Spark Plug End Terminal Type | Standard |
| Spark Plug Wire Resistance | 500 |
| Universal Or Specific Fit | Specific |
| Wire 1 Length | 22.0 in |
| Wire 2 Length | 21.0 in |
| Wire 3 Length | 21.0 in |
| Wire 4 Length | 26.0 in |
| Wire 5 Length | 29.0 in |
| Wire 6 Length | 31.0 in |
| Wire 7 Length | 34.0 in |
| Wire 8 Length | 34.0 in |
| Wire Separators Included | No |
| UPC / GTIN | 00085347227112 |
Description
The Edelbrock #22711 Max-Fire Universal Ultra-Spark 50 spark plug wire sets feature the same high quality as our model specific sets, but give you the flexibility to tailor them to fit your V8 application perfectly. Includes 90 Deg spark plug boot pre-installed from the factory. The Edelbrock #22711 include early OEM socket style and late style HEI plug distributor terminals to make sure your covered. Comes with the following wire lengths
