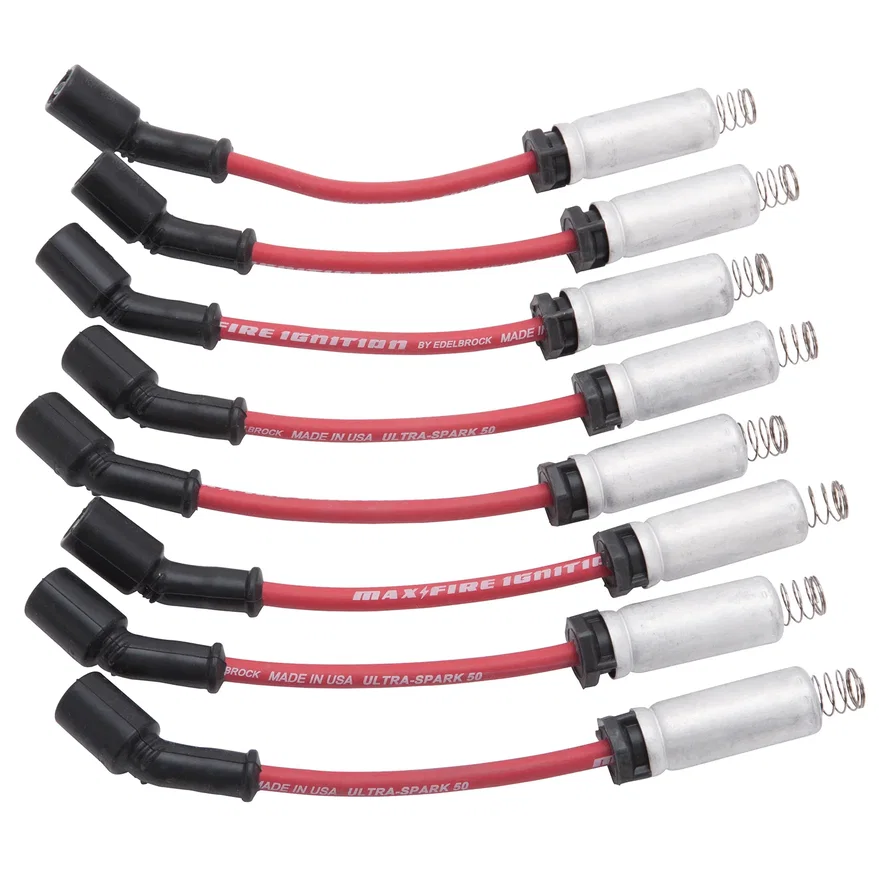

Edelbrock Max-Fire Engine Specific (Ultra-Spark 50) High Performance Spark Plug Wire Set

Part # 22715SKU EDE22715

Set your vehicle above for a fit verdict. 44 vehicles listed below.

Specifications
BrandEdelbrock
Part typeSpark Plug Wire Set
Coil End Boot ColorBlack
Coil Wire Length8.0 in
Core MaterialMagnetic Kevlar Core
Insulation ColorWhite
Insulation MaterialEPDM
Insulation Outside Diameter0.23 in
Noise Suppression TypeYes
Outside Diameter8.5 mm
Resistance50
Spark Plug Boot MaterialCompact Silicone
Spark Plug End Boot ColorBlack
Spark Plug End Boot Degree45 deg
Spark Plug End Boot Quantity Straight8
Spark Plug End Terminal TypeLS
Spark Plug Wire Resistance50
Universal Or Specific FitSpecific
Wire 1 Length8.0 in
Wire 2 Length8.0 in
Wire 3 Length8.0 in
Wire 4 Length8.0 in
Wire 5 Length8.0 in
Wire 6 Length8.0 in
Wire 7 Length8.0 in
Wire 8 Length8.0 in
Wire Separators IncludedNo
UPC / GTIN00085347227150

Description

The Edelbrock #22715 Max-Fire Ultra-Spark 50 Performance's Spark plug wires are manufactured from highest quality materials to help deliver maximum voltage ensuring the ultimate performance. These wires have an extremely high EMI/RFI suppression along with a very low resistance to help deliver the most spark possible. They feature a heavy duty 8.5mm diameter silicone jacket to protect the Kevlar spiral wound core from heat, moisture and chemicals. They are engineered for high performance engines that need all of the voltage they can get for maximum power output. Made with wire leads that deliver a low 40 ohms of resistance per-foot for maximum EMI/RFI noise suppression. This makes them ideal for engines with aftermarket high performance upgrades that require maximum voltage. See application chart for engine or vehicle specific kits.

Fits these vehicles 44

YearMakeModelEngine
2002 - 2005CadillacEscalade5.3L 325 V8, 6.0L 364 V8
2006CadillacEscalade6.0L 364 V8
2002 - 2006ChevroletAvalanche 15005.3L 325 V8
1999 - 2000ChevroletB77.4L 454 V8
1999 - 2000ChevroletC6500 Kodiak7.4L 454 V8
1999 - 2000ChevroletC7500 Kodiak7.4L 454 V8
1999 - 2002ChevroletSilverado 15004.8L 294 V8, 5.3L 325 V8
2003 - 2006ChevroletSilverado 15004.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8
2007ChevroletSilverado 1500 Classic6.0L 364 V8
2001 - 2003ChevroletSilverado 1500 HD6.0L 364 V8
2005 - 2006ChevroletSilverado 1500 HD6.0L 364 V8
1999 - 2000ChevroletSilverado 25005.3L 325 V8, 6.0L 364 V8
2001 - 2004ChevroletSilverado 25006.0L 364 V8
2001 - 2007ChevroletSilverado 2500 HD6.0L 364 V8
2001 - 2006ChevroletSilverado 35006.0L 364 V8
2007ChevroletSilverado 3500 Classic6.0L 364 V8
2000 - 2005ChevroletSuburban 15005.3L 325 V8
2006ChevroletSuburban 15005.3L 325 V8, 6.0L 364 V8
2000 - 2006ChevroletSuburban 25006.0L 364 V8
2000 - 2006ChevroletTahoe4.8L 294 V8, 5.3L 325 V8
2004 - 2008ChevroletW3500 Tiltmaster6.0L 364 V8
2003 - 2008ChevroletW4500 Tiltmaster6.0L 364 V8
1999 - 2000GMCB77.4L 454 V8
1999 - 2000GMCC6500 Topkick7.4L 454 V8
1999 - 2000GMCC7500 Topkick7.4L 454 V8
1999 - 2001GMCSierra 15004.8L 294 V8, 5.3L 325 V8
2002 - 2006GMCSierra 15004.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8
2007GMCSierra 15006.0L 364 V8
2001 - 2003GMCSierra 1500 HD6.0L 364 V8
2005 - 2006GMCSierra 1500 HD6.0L 364 V8
2007GMCSierra 1500 HD Classic6.0L 364 V8
1999 - 2000GMCSierra 25005.3L 325 V8, 6.0L 364 V8
2001 - 2004GMCSierra 25006.0L 364 V8
2001 - 2007GMCSierra 2500 HD6.0L 364 V8
2007GMCSierra 2500 HD Classic6.0L 364 V8
2001 - 2006GMCSierra 35006.0L 364 V8
2007GMCSierra 3500 Classic6.0L 364 V8
2004 - 2008GMCW3500 Forward6.0L 364 V8
2000GMCYukon4.8L 294 V8, 5.3L 325 V8
2001 - 2006GMCYukon4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8
2000GMCYukon XL 15005.3L 325 V8
2001 - 2006GMCYukon XL 15005.3L 325 V8, 6.0L 364 V8
2000 - 2006GMCYukon XL 25006.0L 364 V8
2003 - 2007HummerH26.0L 364 V8
