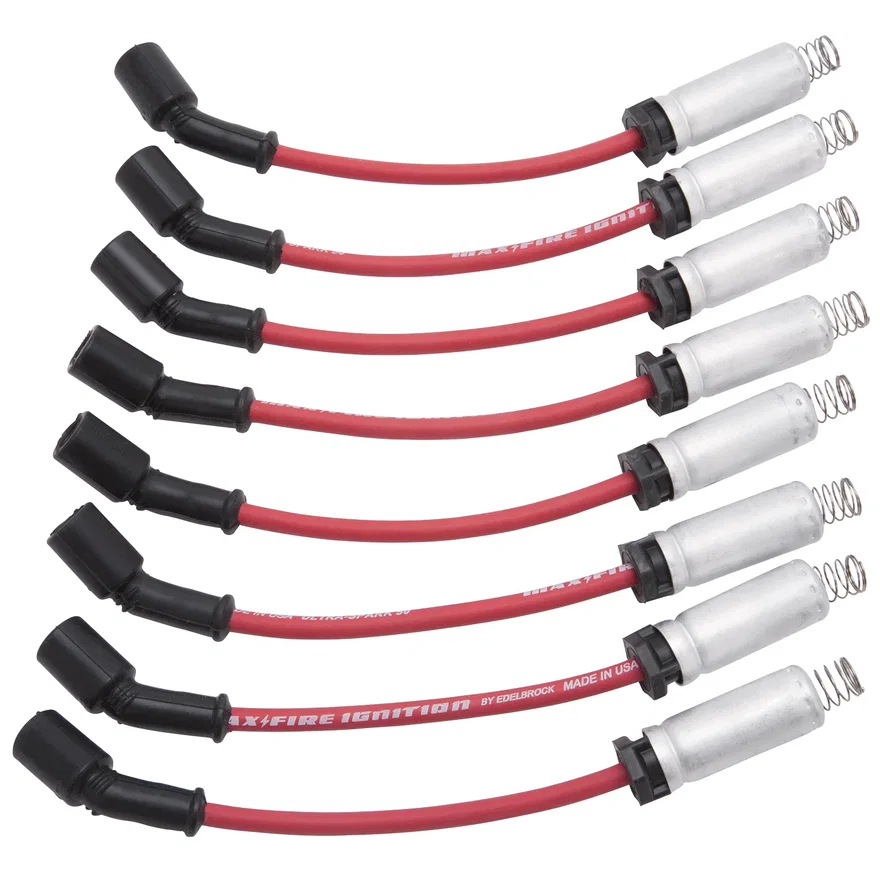

Edelbrock Max-Fire (Ultra-Spark 50) GM LS Truck Spark Plug Wire Set
Part # 22716SKU EDE22716
Set your vehicle above for a fit verdict. 110 vehicles listed below.
| Brand | Edelbrock |
|---|---|
| Part type | Spark Plug Wire Set |
| Coil End Boot Color | Black |
| Coil Wire Length | 12.5 in |
| Core Material | Magnetic Kevlar Core |
| Insulation Color | White |
| Insulation Material | EPDM |
| Insulation Outside Diameter | 0.23 in |
| Noise Suppression Type | Yes |
| Outside Diameter | 8.5 mm |
| Resistance | 50 Ohms |
| Spark Plug Boot Material | Compact Silicone |
| Spark Plug End Boot Color | Black |
| Spark Plug End Boot Degree | 45 deg |
| Spark Plug End Boot Quantity Straight | 8 |
| Spark Plug End Terminal Type | LS |
| Spark Plug Wire Resistance | 50 Ohm |
| Universal Or Specific Fit | Specific |
| Wire 1 Length | 12.5 in |
| Wire 2 Length | 12.5 in |
| Wire 3 Length | 12.5 in |
| Wire 4 Length | 12.5 in |
| Wire 5 Length | 12.5 in |
| Wire 6 Length | 12.5 in |
| Wire 7 Length | 12.5 in |
| Wire 8 Length | 13 in |
| Wire Separators Included | No |
| UPC / GTIN | 00085347227167 |
- The Edelbrock #22716 Max-Fire Ultra-Spark 50 Performance's Spark plug wires are manufactured from highest quality materials to help deliver maximum voltage ensuring the ultimate performance.
- These wires have an extremely high EMI/RFI suppression along with a very low resistance to help deliver the most spark possible.
- They feature a heavy duty 8.5mm diameter silicone jacket to protect the Kevlar spiral wound core from heat, moisture and chemicals.
- They are engineered for high performance engines that need all of the voltage they can get for maximum power output. Made with wire leads that deliver a low 40 ohms of resistance per-foot for maximum EMI/RFI noise suppression.
- This makes them ideal for engines with aftermarket high performance upgrades that require maximum voltage. See application chart for engine or vehicle specific kits.
Description
The Edelbrock #22716 Max-Fire Ultra-Spark 50 Performance's Spark plug wires are manufactured from highest quality materials to help deliver maximum voltage ensuring the ultimate performance. These wires have an extremely high EMI/RFI suppression along with a very low resistance to help deliver the most spark possible. They feature a heavy duty 8.5mm diameter silicone jacket to protect the Kevlar spiral wound core from heat, moisture and chemicals. They are engineered for high performance engines that need all of the voltage they can get for maximum power output. Made with wire leads that deliver a low 40 ohms of resistance per-foot for maximum EMI/RFI noise suppression. This makes them ideal for engines with aftermarket high performance upgrades that require maximum voltage. See application chart for engine or vehicle specific kits.
More from Edelbrock
| 22711 | $128.99 |
| 22701 | $105.99 |
| 22700 | $109.99 |
| 22710 | $128.99 |
| 22717 | $106.99 |
| 22715 | $121.99 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2008 - 2009 | Buick | Allure | - | 5.3L 325 V8 |
| 2008 - 2009 | Buick | LaCrosse | - | 5.3L 325 V8 |
| 2005 - 2007 | Buick | Rainier | - | 5.3L 325 V8 |
| 2004 - 2005 | Cadillac | CTS | V | 5.7L 346 V8 |
| 2006 - 2007 | Cadillac | CTS | V | 6.0L 364 V8 |
| 2009 - 2014 | Cadillac | CTS | V | 6.2L 376 V8 |
| 2002 - 2005 | Cadillac | Escalade | - | 5.3L 325 V8, 6.0L 364 V8 |
| 2006 | Cadillac | Escalade | - | 6.0L 364 V8 |
| 2007 - 2008 | Cadillac | Escalade | - | 6.2L 376 V8 |
| 2009 - 2013 | Cadillac | Escalade | - | 6.0L 364 V8, 6.2L 376 V8 |
| 2014 | Cadillac | Escalade | - | 6.2L 376 V8 |
| 2007 - 2009 | Chevrolet | Avalanche | - | 5.3L 325 V8, 6.0L 364 V8 |
| 2010 - 2013 | Chevrolet | Avalanche | - | 5.3L 325 V8 |
| 2002 - 2006 | Chevrolet | Avalanche 1500 | - | 5.3L 325 V8 |
| 1998 | Chevrolet | Camaro | - | 5.7L 350 V8 |
| 2010 - 2014 | Chevrolet | Camaro | - | 6.2L 376 V8 |
| 2015 | Chevrolet | Camaro | - | 6.2L 376 V8, 7.0L 427 V8 |
| 2011 - 2015 | Chevrolet | Caprice | - | 6.0L 364 V8 |
| 2010 - 2013 | Chevrolet | Cheyenne | - | 5.3L 325 V8 |
| 2009 - 2011 | Chevrolet | Colorado | - | 5.3L 325 V8 |
| 1997 - 2004 | Chevrolet | Corvette | - | 5.7L 350 V8 |
| 2005 | Chevrolet | Corvette | - | |
| 2006 - 2007 | Chevrolet | Corvette | - | 6.0L 364 V8, 7.0L 427 V8 |
| 2008 - 2013 | Chevrolet | Corvette | - | 6.2L 376 V8, 7.0L 427 V8 |
| 2008 - 2014 | Chevrolet | Express 1500 | - | 5.3L 325 V8 |
| 2008 - 2014 | Chevrolet | Express 2500 | - | 4.8L 294 V8, 6.0L 364 V8 |
| 2008 - 2014 | Chevrolet | Express 3500 | - | 4.8L 294 V8, 6.0L 364 V8 |
| 2010 - 2014 | Chevrolet | Express Cargo | - | 6.0L 364 V8 |
| 2010 | Chevrolet | Express Pasajeros | - | 5.3L 325 V8, 6.0L 364 V8 |
| 2011 | Chevrolet | Express Pasajeros | - | 6.0L 364 V8 |
| 2012 - 2014 | Chevrolet | Express Pasajeros | - | 5.3L 325 V8, 6.0L 364 V8 |
| 2006 - 2009 | Chevrolet | Impala | - | 5.3L 325 V8 |
| 2006 - 2007 | Chevrolet | Monte Carlo | - | 5.3L 325 V8 |
| 1999 - 2002 | Chevrolet | Silverado 1500 | - | 4.8L 294 V8, 5.3L 325 V8 |
| 2003 - 2008 | Chevrolet | Silverado 1500 | - | 4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8 |
| 2009 - 2013 | Chevrolet | Silverado 1500 | - | 4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8, 6.2L 376 V8 |
| 2007 | Chevrolet | Silverado 1500 Classic | - | 6.0L 364 V8 |
| 2001 - 2003 | Chevrolet | Silverado 1500 HD | - | 6.0L 364 V8 |
| 2005 - 2006 | Chevrolet | Silverado 1500 HD | - | 6.0L 364 V8 |
| 2007 | Chevrolet | Silverado 1500 HD Classic | - | 6.0L 364 V8 |
| 1999 | Chevrolet | Silverado 2500 | - | 5.3L 325 V8, 6.0L 364 V8 |
| 2000 - 2004 | Chevrolet | Silverado 2500 | - | 6.0L 364 V8 |
| 2007 - 2009 | Chevrolet | Silverado 2500 | - | 5.3L 325 V8 |
| 2001 - 2006 | Chevrolet | Silverado 2500 HD | - | 6.0L 364 V8 |
| 2008 - 2013 | Chevrolet | Silverado 2500 HD | - | 6.0L 364 V8 |
| 2001 - 2006 | Chevrolet | Silverado 3500 | - | 6.0L 364 V8 |
| 2011 - 2012 | Chevrolet | Silverado 3500 | - | 6.0L 364 V8 |
| 2007 | Chevrolet | Silverado 3500 Classic | - | 6.0L 364 V8 |
| 2008 - 2014 | Chevrolet | Silverado 3500 HD | - | 6.0L 364 V8 |
| 2005 - 2006 | Chevrolet | SSR | - | 6.0L 364 V8 |
| 2000 - 2005 | Chevrolet | Suburban 1500 | - | 5.3L 325 V8 |
| 2006 | Chevrolet | Suburban 1500 | - | 5.3L 325 V8, 6.0L 364 V8 |
| 2009 | Chevrolet | Suburban 1500 | - | 5.3L 325 V8, 6.0L 364 V8 |
| 2010 - 2011 | Chevrolet | Suburban 1500 | - | 5.3L 325 V8 |
| 2012 - 2013 | Chevrolet | Suburban 1500 | - | 5.3L 325 V8, 6.0L 364 V8 |
| 2014 | Chevrolet | Suburban 1500 | - | 5.3L 325 V8 |
| 2000 - 2008 | Chevrolet | Suburban 2500 | - | 6.0L 364 V8 |
| 2009 | Chevrolet | Suburban 2500 | - | |
| 2010 - 2013 | Chevrolet | Suburban 2500 | - | 6.0L 364 V8 |
| 2000 - 2007 | Chevrolet | Tahoe | - | 4.8L 294 V8, 5.3L 325 V8 |
| 2008 - 2009 | Chevrolet | Tahoe | - | 4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8, 6.2L 376 V8 |
| 2010 - 2013 | Chevrolet | Tahoe | - | 5.3L 325 V8, 6.0L 364 V8 |
| 2014 | Chevrolet | Tahoe | - | 5.3L 325 V8 |
| 2006 - 2008 | Chevrolet | Trailblazer | - | 5.3L 325 V8, 6.0L 364 V8 |
| 2009 | Chevrolet | Trailblazer | - | 6.0L 364 V8 |
| 2005 - 2006 | Chevrolet | Trailblazer EXT | - | 5.3L 325 V8 |
| 2009 - 2012 | GMC | Canyon | - | 5.3L 325 V8 |
| 2005 - 2009 | GMC | Envoy | - | 5.3L 325 V8 |
| 2005 - 2006 | GMC | Envoy XL | - | 5.3L 325 V8 |
| 2005 | GMC | Envoy XUV | - | 5.3L 325 V8 |
| 2008 - 2014 | GMC | Savana 1500 | - | 5.3L 325 V8 |
| 2008 - 2014 | GMC | Savana 2500 | - | 4.8L 294 V8, 6.0L 364 V8 |
| 2008 - 2014 | GMC | Savana 3500 | - | 4.8L 294 V8, 6.0L 364 V8 |
| 2009 - 2014 | GMC | Savana 4500 | - | 6.0L 364 V8 |
| 2007 | GMC | Sierra | - | 5.3L 325 V8 |
| 2008 - 2014 | GMC | Sierra | - | 5.3L 325 V8, 6.2L 376 V8 |
| 1999 - 2006 | GMC | Sierra 1500 | - | 4.8L 294 V8, 5.3L 325 V8 |
| 2007 | GMC | Sierra 1500 | - | 4.8L 294 V8, 5.3L 325 V8, 6.2L 376 V8 |
| 2008 - 2013 | GMC | Sierra 1500 | - | 4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8, 6.2L 376 V8 |
| 2001 - 2003 | GMC | Sierra 1500 HD | - | 6.0L 364 V8 |
| 2005 - 2006 | GMC | Sierra 1500 HD | - | 6.0L 364 V8 |
| 1999 - 2000 | GMC | Sierra 2500 | - | 5.3L 325 V8 |
| 2009 - 2013 | GMC | Sierra 2500 HD | - | 6.0L 364 V8 |
| 2007 | GMC | Sierra 2500 HD Classic | - | 6.0L 364 V8 |
| 2001 - 2006 | GMC | Sierra 3500 | - | 6.0L 364 V8 |
| 2007 | GMC | Sierra 3500 Classic | - | 6.0L 364 V8 |
| 2007 - 2014 | GMC | Sierra 3500 HD | - | 6.0L 364 V8 |
| 2000 | GMC | Yukon | - | 4.8L 294 V8, 5.3L 325 V8 |
| 2001 - 2006 | GMC | Yukon | - | 4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8 |
| 2007 | GMC | Yukon | - | 4.8L 294 V8, 5.3L 325 V8, 6.2L 376 V8 |
| 2008 - 2009 | GMC | Yukon | - | 4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8, 6.2L 376 V8 |
| 2010 - 2013 | GMC | Yukon | - | 5.3L 325 V8, 6.0L 364 V8, 6.2L 376 V8 |
| 2014 | GMC | Yukon | - | 5.3L 325 V8, 6.2L 376 V8 |
| 2000 | GMC | Yukon XL 1500 | - | 5.3L 325 V8 |
| 2001 - 2006 | GMC | Yukon XL 1500 | - | 5.3L 325 V8, 6.0L 364 V8 |
| 2007 - 2014 | GMC | Yukon XL 1500 | - | 5.3L 325 V8, 6.2L 376 V8 |
| 2000 - 2008 | GMC | Yukon XL 2500 | - | 6.0L 364 V8 |
| 2011 - 2013 | GMC | Yukon XL 2500 | - | 6.0L 364 V8 |
| 2003 - 2007 | Hummer | H2 | - | 6.0L 364 V8 |
| 2008 - 2009 | Hummer | H2 | - | 6.2L 376 V8 |
| 2008 - 2010 | Hummer | H3 | - | 5.3L 325 V8 |
| 2009 - 2010 | Hummer | H3T | - | 5.3L 325 V8 |
| 2005 - 2006 | Isuzu | Ascender | - | 5.3L 325 V8 |
| 1998 - 2002 | Pontiac | Firebird | - | 5.7L 350 V8 |
| 2008 - 2009 | Pontiac | G8 | - | 6.0L 364 V8 |
| 2005 - 2008 | Pontiac | Grand Prix | - | 5.3L 325 V8 |
| 2004 | Pontiac | GTO | - | 5.7L 350 V8 |
| 2005 - 2006 | Pontiac | GTO | - | 6.0L 364 V8 |
| 2005 - 2007 | Saab | 9-7x | - | 5.3L 325 V8 |
| 2008 - 2009 | Saab | 9-7x | - | 5.3L 325 V8, 6.0L 364 V8 |
