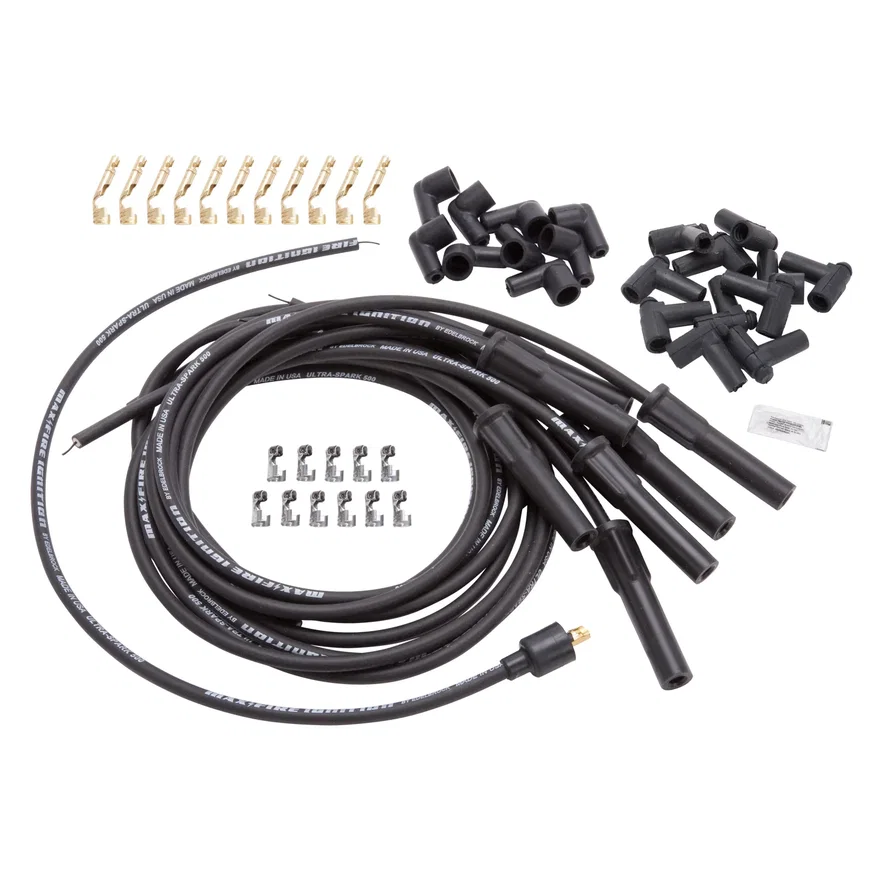

Edelbrock Max-Fire Engine Specific (Ultra-Spark 500) High Performance Spark Plug Wire Set
Part # 22700SKU EDE22700
Universal fit
| Brand | Edelbrock |
|---|---|
| Part type | Spark Plug Wire Set |
| Coil End Boot Color | Black |
| Coil Wire Length | 28.0 in |
| Core Material | Magnetic Kevlar Core |
| Distributor Coil End Boot Degree | 90 deg |
| Distributor Coil End Boot Type | Points, HEI |
| Distributor Coil End Terminal Type | HEI & Non_HEI |
| Insulation Color | White |
| Insulation Material | Inner Insulation |
| Insulation Outside Diameter | 0.23 in |
| Noise Suppression Type | No |
| Outside Diameter | 8.5 mm |
| Resistance | 500 |
| Spark Plug Boot Material | Compact Silicone |
| Spark Plug End Boot Color | Black |
| Spark Plug End Boot Quantity Straight | 8 |
| Spark Plug End Terminal Type | Standard |
| Spark Plug Wire Resistance | 500 |
| Universal Or Specific Fit | Universal |
| Wire 1 Length | 53.0 in |
| Wire 2 Length | 49.0 in |
| Wire 3 Length | 45.0 in |
| Wire 4 Length | 45.0 in |
| Wire 5 Length | 41.0 in |
| Wire 6 Length | 37.0 in |
| Wire 7 Length | 33.0 in |
| Wire 8 Length | 33.0 in |
| Wire Separators Included | No |
| UPC / GTIN | 00085347227006 |
Description
The Edelbrock #22700 Max-Fire Universal Ultra-Spark 500 spark plug wire set features the same high quality as our model specific sets, but give you the flexibility to tailor them to fit your V8 application perfectly. Includes the straight spark plug boot pre-installed from the factory and the 90 Deg boots. The straight boot is a "Vari-Angle" boot that allows the boot to be bent and hold its position in tight areas to clear headers. The Edelbrock #22700 include early OEM socket style and late style HEI plug distributor terminals to make sure your covered. Comes with the following wire lengths
