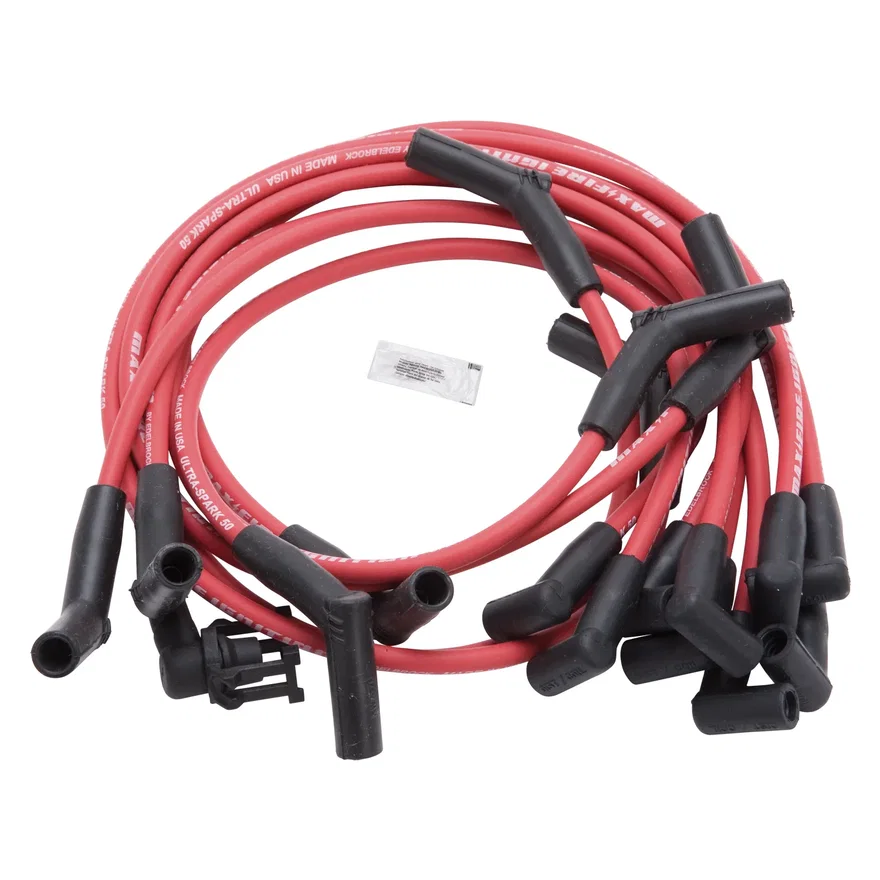

Edelbrock Max-Fire Engine Specific (Ultra-Spark 50) High Performance Spark Plug Wire Set

Part # 22714SKU EDE22714

Set your vehicle above for a fit verdict. 37 vehicles listed below.

Specifications
BrandEdelbrock
Part typeSpark Plug Wire Set
Coil End Boot ColorBlack
Core MaterialMagnetic Kevlar Core
Distributor Coil End Boot Degree90 deg
Distributor Coil End Boot TypeClip On, HEI Style
Distributor Coil End Terminal TypeHEI
Insulation ColorWhite
Insulation MaterialEPDM
Insulation Outside Diameter0.23 in
Noise Suppression TypeYes
Outside Diameter8.5 mm
Resistance50
Spark Plug Boot MaterialCompact Silicone
Spark Plug End Boot ColorBlack
Spark Plug End Boot Quantity Angled8
Spark Plug End Boot Quantity Straight8
Spark Plug End Terminal TypeStandard
Spark Plug Wire Resistance50
Universal Or Specific FitSpecific
Wire 1 Length22.0 in
Wire 2 Length21.0 in
Wire 3 Length21.0 in
Wire 4 Length26.0 in
Wire 5 Length29.0 in
Wire 6 Length31.0 in
Wire 7 Length34.0 in
Wire 8 Length34.0 in
Wire Separators IncludedNo
UPC / GTIN00085347227143

Description

The Edelbrock #22714 Max-Fire Ultra-Spark 50 Performance's Spark plug wires are manufactured from highest quality materials to help deliver maximum voltage ensuring the ultimate performance. These wires have an extremely high EMI/RFI suppression along with a very low resistance to help deliver the most spark possible. They feature a heavy duty 8.5mm diameter silicone jacket to protect the Kevlar spiral wound core from heat, moisture and chemicals. They are engineered for high performance engines that need all of the voltage they can get for maximum power output. Made with wire leads that deliver a low 40 ohms of resistance per-foot for maximum EMI/RFI noise suppression. This makes them ideal for engines with aftermarket high performance upgrades that require maximum voltage. See application chart for engine or vehicle specific kits.

Fits these vehicles 37

YearMakeModelEngine
1984 - 1986DeTomasoPantera5.8L 351 V8
1983 - 1987FordBronco5.8L 351 V8
1988 - 1996FordBronco5.0L 302 V8
1987FordCountry Squire5.0L 302 V8
1980 - 1982FordE-100 Econoline5.8L 351 V8
1980 - 1983FordE-100 Econoline Club Wagon5.8L 351 V8
1980 - 1987FordE-150 Econoline5.8L 351 V8
1988 - 1996FordE-150 Econoline5.0L 302 V8
1980 - 1987FordE-150 Econoline Club Wagon5.8L 351 V8
1988 - 1996FordE-150 Econoline Club Wagon5.0L 302 V8
1980 - 1987FordE-250 Econoline5.8L 351 V8
1988 - 1991FordE-250 Econoline5.0L 302 V8
1980 - 1987FordE-250 Econoline Club Wagon5.8L 351 V8
1980 - 1987FordE-350 Econoline5.8L 351 V8
1980 - 1987FordE-350 Econoline Club Wagon5.8L 351 V8
1981 - 1987FordF-1505.8L 351 V8
1988 - 1992FordF-1505.0L 302 V8
1994 - 1996FordF-1505.0L 302 V8
1981 - 1987FordF-2505.8L 351 V8
1988 - 1996FordF-2505.0L 302 V8
1981 - 1987FordF-3505.8L 351 V8
1979FordLTD5.8L 351 V8
1984 - 1986FordLTD5.0L 302 V8, 5.8L 351 V8
1987FordLTD Crown Victoria5.0L 302 V8, 5.8L 351 V8
1979FordLTD II5.8L 351 V8
1984 - 1995FordMustang5.0L 302 V8
1979FordRanchero5.8L 351 V8
1979FordThunderbird5.8L 351 V8
1987 - 1992LincolnMark VII5.0L 302 V8
1984 - 1986MercuryCapri5.0L 302 V8
1987MercuryColony Park5.0L 302 V8
1979MercuryCougar5.8L 351 V8
1979MercuryGrand Marquis5.8L 351 V8
1986MercuryGrand Marquis5.0L 302 V8
1987MercuryGrand Marquis5.0L 302 V8, 5.8L 351 V8
1988 - 1989MercuryGrand Marquis5.8L 351 V8
1979MercuryMarquis5.0L 302 V8, 5.8L 351 V8
