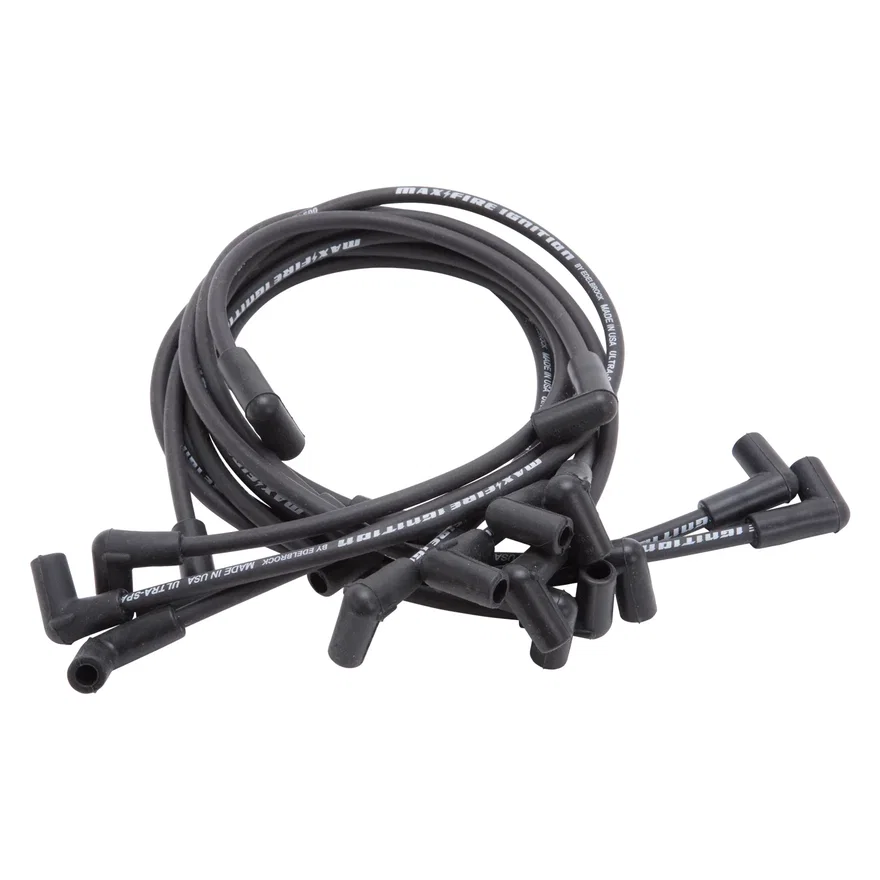

Edelbrock Max-Fire Engine Specific (Ultra-Spark 500) High Performance Spark Plug Wire Set

Part # 22702SKU EDE22702

Set your vehicle above for a fit verdict. 103 vehicles listed below.

Specifications
BrandEdelbrock
Part typeSpark Plug Wire Set
Coil End Boot ColorBlack
Coil Wire Length28.0 in
Core MaterialMagnetic Kevlar Core
Distributor Coil End Boot Degree90 deg
Distributor Coil End Boot TypePoints, HEI
Distributor Coil End Terminal TypeHEI & Non_HEI
Insulation ColorWhite
Insulation MaterialEPDM
Insulation Outside Diameter0.23 in
Noise Suppression TypeYes
Outside Diameter8.5 mm
Resistance50
Spark Plug Boot MaterialCompact Silicone
Spark Plug End Boot ColorBlack
Spark Plug End Boot Quantity Straight8
Spark Plug End Terminal TypeStandard
Spark Plug Wire Resistance50
Universal Or Specific FitUniversal
Wire 1 Length53.0 in
Wire 2 Length49.0 in
Wire 3 Length45.0 in
Wire 4 Length45.0 in
Wire 5 Length41.0 in
Wire 6 Length37.0 in
Wire 7 Length33.0 in
Wire 8 Length33.0 in
Wire Separators IncludedNo
UPC / GTIN00085347227020

Description

The Edelbrock #22702 Max-Fire Ultra-Spark 500 Performance's Spark plug wires are manufactured from highest quality materials to help deliver maximum voltage ensuring the ultimate performance. These wires have an extremely high EMI/RFI suppression along with a very low resistance to help deliver the most spark possible. They feature a heavy duty 8.5mm diameter silicone jacket to protect the Kevlar spiral wound core from heat, moisture and chemicals. Ultra-Spark 500 is a great choice for replacing OEM wires and are value priced. They feature high quality leads that deliver 500 ohms of EMI/RFI noise suppression with low resistance. They are ideal for daily drivers and for budget builds, offering the best combination of value and performance. See application chart for engine or vehicle specific kits.

Fits these vehicles 103

YearMakeModelEngine
1977BuickCentury5.0L 305 V8, 5.7L 350 V8
1977BuickRegal5.0L 305 V8, 5.7L 350 V8
1977BuickSkylark5.0L 305 V8
1974CheckerMarathon
1975 - 1976CheckerMarathon5.7L 350 V8
1977 - 1979CheckerMarathon5.0L 305 V8, 5.7L 350 V8
1974ChevroletBel Air
1975ChevroletBel Air5.7L 350 V8
1975ChevroletC105.7L 350 V8
1976ChevroletC105.7L 350 V8, 6.6L 400 V8
1977ChevroletC105.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8
1975 - 1976ChevroletC10 Suburban5.7L 350 V8
1977ChevroletC10 Suburban5.0L 305 V8, 5.7L 350 V8
1975ChevroletC205.7L 350 V8
1976ChevroletC205.7L 350 V8, 6.6L 400 V8
1977ChevroletC205.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8
1975ChevroletC20 Suburban5.7L 350 V8
1976ChevroletC20 Suburban5.7L 350 V8, 6.6L 400 V8
1977ChevroletC20 Suburban5.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8
1975ChevroletC305.7L 350 V8
1976 - 1977ChevroletC305.7L 350 V8, 6.6L 400 V8
1974 - 1975ChevroletCamaro5.7L 350 V8
1976ChevroletCamaro5.0L 305 V8, 5.7L 350 V8
1973 - 1974ChevroletCaprice
1975 - 1976ChevroletCaprice5.7L 350 V8, 6.6L 400 V8
1973ChevroletChevelle
1974ChevroletEl Camino
1975ChevroletEl Camino6.6L 400 V8
1976ChevroletEl Camino5.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8
1977ChevroletEl Camino5.0L 305 V8
1975ChevroletG105.7L 350 V8
1976ChevroletG105.7L 350 V8, 6.6L 400 V8
1977ChevroletG105.0L 305 V8, 5.7L 350 V8
1975 - 1977ChevroletG205.7L 350 V8, 6.6L 400 V8
1975 - 1977ChevroletG305.7L 350 V8, 6.6L 400 V8
1974ChevroletImpala
1975 - 1976ChevroletImpala5.7L 350 V8, 6.6L 400 V8
1975 - 1976ChevroletK105.7L 350 V8, 6.6L 400 V8
1977ChevroletK105.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8
1975 - 1976ChevroletK10 Suburban5.7L 350 V8, 6.6L 400 V8
1977ChevroletK10 Suburban5.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8
1975 - 1976ChevroletK205.7L 350 V8, 6.6L 400 V8
1977ChevroletK205.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8
1975 - 1976ChevroletK20 Suburban5.7L 350 V8, 6.6L 400 V8
1977ChevroletK20 Suburban5.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8
1977ChevroletK305.7L 350 V8, 6.6L 400 V8
1975 - 1976ChevroletK5 Blazer5.7L 350 V8, 6.6L 400 V8
1977ChevroletK5 Blazer5.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8
1975ChevroletMalibu5.7L 350 V8
1974ChevroletMonte Carlo
1975ChevroletMonte Carlo5.7L 350 V8, 6.6L 400 V8
1976ChevroletMonte Carlo5.7L 350 V8
1977ChevroletMonte Carlo5.0L 305 V8
1976ChevroletMonza5.0L 305 V8
1973ChevroletNova
1975ChevroletNova4.3L 262 V8, 5.7L 350 V8
1976ChevroletNova5.0L 305 V8, 5.7L 350 V8
1975ChevroletP105.7L 350 V8
1977ChevroletP105.7L 350 V8, 6.6L 400 V8
1975 - 1977ChevroletP205.7L 350 V8
1975ChevroletP305.7L 350 V8
1976ChevroletP305.7L 350 V8, 6.6L 400 V8
1977ChevroletP305.7L 350 V8
1975GMCC155.7L 350 V8
1976GMCC155.7L 350 V8, 6.6L 400 V8
1977GMCC155.0L 305 V8, 5.7L 350 V8
1975 - 1976GMCC15 Suburban5.7L 350 V8
1977GMCC15 Suburban5.0L 305 V8, 5.7L 350 V8
1975GMCC255.7L 350 V8
1976GMCC255.7L 350 V8, 6.6L 400 V8
1977GMCC255.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8
1975 - 1976GMCC25 Suburban5.7L 350 V8
1977GMCC25 Suburban5.0L 305 V8, 5.7L 350 V8
1975GMCC355.7L 350 V8
1976 - 1977GMCC355.7L 350 V8, 6.6L 400 V8
1975GMCG155.7L 350 V8
1976GMCG155.7L 350 V8, 6.6L 400 V8
1977 - 1978GMCG155.0L 305 V8, 5.7L 350 V8
1975GMCG255.7L 350 V8
1976 - 1977GMCG255.7L 350 V8, 6.6L 400 V8
1975GMCG355.7L 350 V8
1976 - 1978GMCG355.7L 350 V8, 6.6L 400 V8
1975 - 1976GMCJimmy5.7L 350 V8, 6.6L 400 V8
1977GMCJimmy5.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8
1975 - 1976GMCK155.7L 350 V8, 6.6L 400 V8
1977GMCK155.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8
1975 - 1976GMCK15 Suburban5.7L 350 V8, 6.6L 400 V8
1977GMCK15 Suburban5.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8
1975 - 1976GMCK255.7L 350 V8, 6.6L 400 V8
1977GMCK255.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8
1975 - 1976GMCK25 Suburban5.7L 350 V8, 6.6L 400 V8
1977GMCK25 Suburban5.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8
1977GMCK355.7L 350 V8, 6.6L 400 V8
1975 - 1977GMCP255.7L 350 V8
1975 - 1977GMCP355.7L 350 V8
1974GMCSprint
1975GMCSprint5.7L 350 V8, 6.6L 400 V8, 6.6L 402 V8
1976GMCSprint5.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8
1977GMCSprint5.0L 305 V8, 5.7L 350 V8
1977PontiacGrand LeMans
1977PontiacLeMans
1977PontiacPhoenix5.0L 305 V8
1977PontiacVentura5.0L 305 V8
