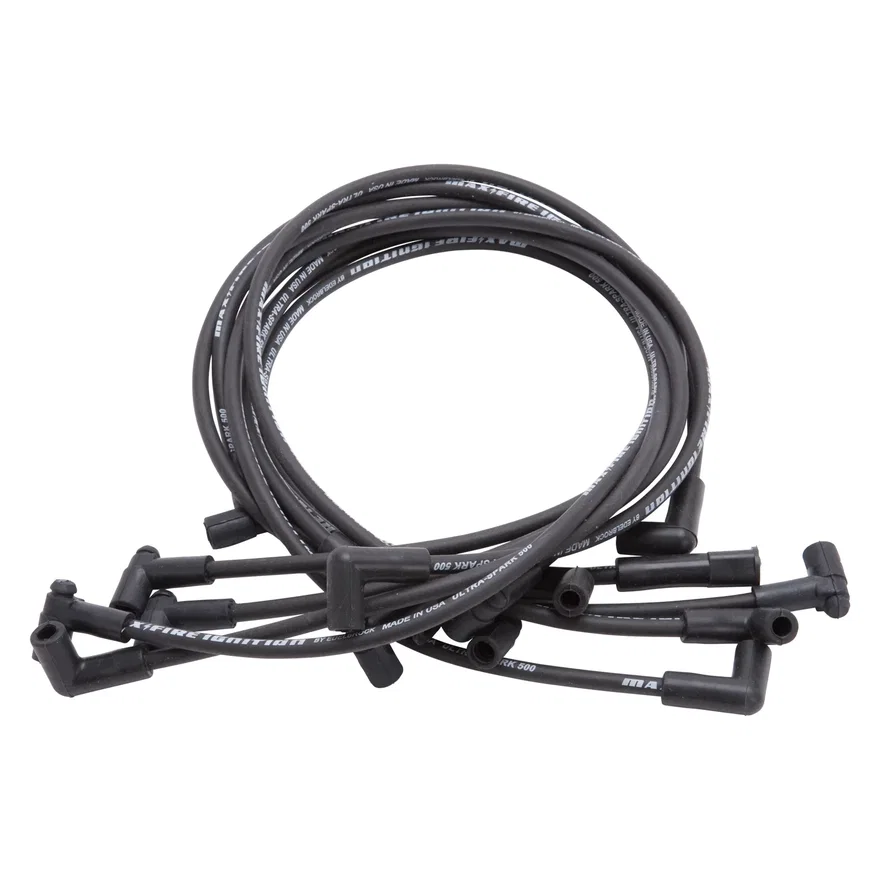

Edelbrock Max-Fire Engine Specific (Ultra-Spark 500) High Performance Spark Plug Wire Set

Part # 22703SKU EDE22703

Set your vehicle above for a fit verdict. 69 vehicles listed below.

Specifications
BrandEdelbrock
Part typeSpark Plug Wire Set
Coil End Boot ColorBlack
Coil Wire Length28.0 in
Core MaterialMagnetic Kevlar Core
Distributor Coil End Boot Degree90 deg
Distributor Coil End Boot TypePoints, HEI
Distributor Coil End Terminal TypeHEI & Non_HEI
Insulation ColorWhite
Insulation MaterialEPDM
Insulation Outside Diameter0.23 in
Noise Suppression TypeYes
Outside Diameter8.5 mm
Resistance50
Spark Plug Boot MaterialCompact Silicone
Spark Plug End Boot ColorBlack
Spark Plug End Boot Degree90 deg
Spark Plug End Boot Quantity Angled8
Spark Plug End Terminal TypeStandard
Spark Plug Wire Resistance50
Universal Or Specific FitUniversal
Wire 1 Length50.0 in
Wire 2 Length47.0 in
Wire 3 Length43.0 in
Wire 4 Length43.0 in
Wire 5 Length39.0 in
Wire 6 Length35.0 in
Wire 7 Length31.0 in
Wire 8 Length31.0 in
Wire Separators IncludedNo
UPC / GTIN00085347227037

Description

The Edelbrock #22703 Max-Fire Ultra-Spark 500 Performance's Spark plug wires are manufactured from highest quality materials to help deliver maximum voltage ensuring the ultimate performance. These wires have an extremely high EMI/RFI suppression along with a very low resistance to help deliver the most spark possible. They feature a heavy duty 8.5mm diameter silicone jacket to protect the Kevlar spiral wound core from heat, moisture and chemicals. Ultra-Spark 500 is a great choice for replacing OEM wires and are value priced. They feature high quality leads that deliver 500 ohms of EMI/RFI noise suppression with low resistance. They are ideal for daily drivers and for budget builds, offering the best combination of value and performance. See application chart for engine or vehicle specific kits.

Fits these vehicles 69

YearMakeModelEngine
1978BuickCentury5.0L 305 V8
1980 - 1981BuickCentury5.0L 305 V8
1978BuickRegal5.0L 305 V8
1980BuickRegal5.0L 305 V8
1978BuickSkylark5.0L 305 V8
1980CheckerMarathon4.4L 267 V8, 5.0L 305 V8
1981 - 1982ChevroletC105.0L 305 V8, 5.7L 350 V8
1985 - 1986ChevroletC105.0L 305 V8, 5.7L 350 V8
1981 - 1982ChevroletC10 Suburban5.0L 305 V8, 5.7L 350 V8
1985 - 1986ChevroletC10 Suburban5.0L 305 V8, 5.7L 350 V8
1981 - 1982ChevroletC205.0L 305 V8, 5.7L 350 V8
1985 - 1986ChevroletC205.0L 305 V8, 5.7L 350 V8
1981 - 1982ChevroletC20 Suburban5.0L 305 V8, 5.7L 350 V8
1985 - 1986ChevroletC20 Suburban5.0L 305 V8, 5.7L 350 V8
1985 - 1986ChevroletC305.7L 350 V8
1981 - 1985ChevroletCamaro5.0L 305 V8
1980ChevroletCaprice4.4L 267 V8, 5.0L 305 V8
1978ChevroletEl Camino5.0L 305 V8
1980ChevroletImpala4.4L 267 V8, 5.0L 305 V8
1981 - 1982ChevroletK105.0L 305 V8, 5.7L 350 V8
1985 - 1986ChevroletK105.0L 305 V8, 5.7L 350 V8
1981ChevroletK10 Suburban5.0L 305 V8, 5.7L 350 V8
1982ChevroletK10 Suburban5.7L 350 V8
1985ChevroletK10 Suburban5.7L 350 V8
1986ChevroletK10 Suburban5.0L 305 V8, 5.7L 350 V8
1981 - 1982ChevroletK205.7L 350 V8
1985ChevroletK205.0L 305 V8, 5.7L 350 V8
1986ChevroletK205.7L 350 V8
1981 - 1982ChevroletK20 Suburban5.7L 350 V8
1985 - 1986ChevroletK20 Suburban5.0L 305 V8, 5.7L 350 V8
1982ChevroletK305.7L 350 V8
1985 - 1986ChevroletK305.7L 350 V8
1981 - 1982ChevroletK5 Blazer5.0L 305 V8, 5.7L 350 V8
1985 - 1986ChevroletK5 Blazer5.0L 305 V8, 5.7L 350 V8
1978ChevroletMalibu5.0L 305 V8
1979ChevroletMalibu4.4L 267 V8, 5.0L 305 V8
1980ChevroletMalibu4.4L 267 V8, 5.0L 305 V8, 5.7L 350 V8
1981ChevroletMalibu5.0L 305 V8
1978 - 1980ChevroletMonte Carlo5.0L 305 V8
1981 - 1982GMCC15005.0L 305 V8, 5.7L 350 V8
1981 - 1982GMCC1500 Suburban5.0L 305 V8, 5.7L 350 V8
1985 - 1986GMCC1500 Suburban5.0L 305 V8
1981GMCC25005.0L 305 V8, 5.7L 350 V8
1982GMCC25005.0L 305 V8
1985 - 1986GMCC25005.7L 350 V8
1982GMCC2500 Suburban5.0L 305 V8
1985 - 1986GMCC2500 Suburban5.7L 350 V8
1985 - 1986GMCC35005.7L 350 V8
1979 - 1980GMCCaballero4.4L 267 V8
1981GMCG15005.0L 305 V8
1982GMCG15005.0L 305 V8, 5.7L 350 V8
1981 - 1982GMCG25005.0L 305 V8
1982GMCG35005.7L 350 V8
1981 - 1982GMCJimmy5.0L 305 V8, 5.7L 350 V8
1981 - 1982GMCK15005.0L 305 V8, 5.7L 350 V8
1985 - 1986GMCK15005.0L 305 V8, 5.7L 350 V8
1982GMCK1500 Suburban5.0L 305 V8, 5.7L 350 V8
1985GMCK1500 Suburban5.7L 350 V8
1981 - 1982GMCK25005.7L 350 V8
1985 - 1986GMCK25005.7L 350 V8
1986GMCK2500 Suburban5.7L 350 V8
1986GMCK35005.7L 350 V8
1980OldsmobileCutlass Calais5.0L 305 V8, 5.7L 350 V8
1980OldsmobileCutlass Cruiser5.0L 305 V8
1980OldsmobileCutlass Salon5.0L 305 V8
1980OldsmobileCutlass Supreme5.0L 305 V8
1980 - 1983PontiacFirebird5.0L 305 V8
1980PontiacGrand Am5.0L 305 V8
1980PontiacGrand LeMans5.0L 305 V8
