| Brand | MSD |
|---|---|
| Part type | Ignition Control Module |
| Bluetooth | Yes |
| Brand | MSD |
| Category | Ignition |
| Color | Black |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Current Draw | 1000 |
| Emission Code | 4 |
| Features | Rev Limiter |
| Grade Type | Performance |
| Height | 3.05 in |
| Ignition Box Type | Ultra |
| Ignition Type | Performance |
| Length | 11 in |
| MAP Sensor | No |
| Maximum RPM | 15,000 |
| Mount Type | Surface Mount |
| Mounting Hardware Included | Yes |
| Primary Voltage | 520-540 |
| Product Type | Digital 6AL Ignition Control Box w/Rev Control |
| Rev Limiter | Yes |
| Rotary Dials | No |
| Secondary Voltage | 45,000 |
| Spark Energy (mJ per spark) | 135 - 150 |
| Sub Category | Control Modules |
| Terminal Gender | Male |
| Terminal Quantity | 20 |
| Voltage Required | 12-15 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight and Size | 3.3 x 3.8 - 344 grams |
| UPC / GTIN | 00090127145319 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- Mobile app available settings: Cylinder selection, Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value, Start retard value
- 12-15 Volts, 7 Volt Start
- Operates on most 7 to 28 volt electrical systems
- High RPM operation and maximum output using the Blaster HVC, PN 8252 or HVC II, PN 8253
- Fully protected against an open coil, shorted coil & open load
- Connects to points, magnetic pickups, and Hall/Crank Input distributors on 4,6, and 8-cylinder engines
- High conversion efficiency ensures minimal heat generation and maximum spark energy output with less current draw from the battery - (Highly efficient Ignition, minimum heat and max spark energy with less current draw)
- High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation
- 15,000 RPM with 14.4 Volts
- Consistently high spark energy of 135mJ to 150mJ for every firing, from idle to redline RPM
- Programmable Start Retard: 0, 10, 20 degrees
- Built-in tri-step RPM rev limit capability - Launch, Burnout, and Step Retard activation
- Powerful capacitive discharge of multiple sparks improves performance - quickens throttle response & improves starting

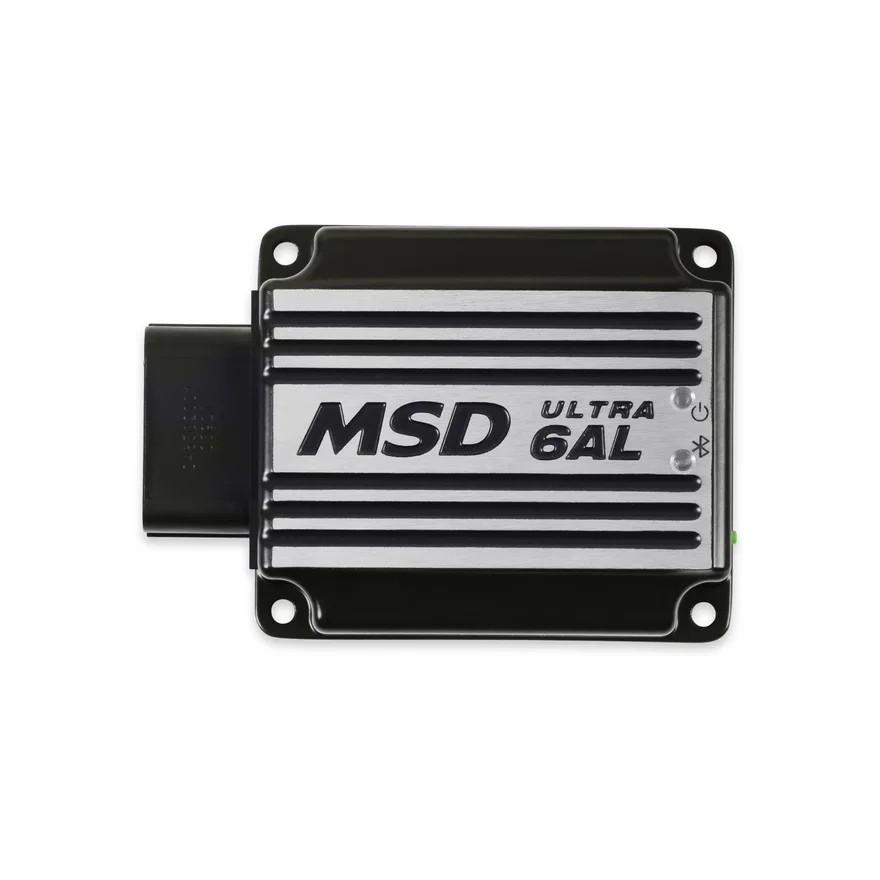

- The Ultra 6AL greatly expands on the capabilities of the 6-series line and is wirelessly controlled from a smart phone via the “MSD Ultra 6AL” app
- 0.8 Amps per 1,000 RPM
- Alerts and monitors available
- Tach Output
- MSD CAN communication for easy connectivity to MSDView using a CAN MSD Hub and Power Grid USB or CAN-USB Bridge 89982 product
- Increase spark series duration lasts for 18 of crankshaft rotation
- Programmable Step Retard (up to 30 degrees): On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation
Description
The Ultra 6AL greatly expands on the capabilities of the 6-series line with three rev limiters (Launch, Burnout, and Step Retard activation) and is wirelessly controlled from a smart phone via the "MSD Ultra 6AL" app. A Programmable Step Retard (up to 30 degrees) is available for: On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation. High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation. Mobile app available settings include Cylinder selection, Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value, Start retard value.
